Rotary Mixer
Manufactured by: Servicebio
Cat. No.: BE-SMV-R
Cat. No.: BE-SMV-R
Product Introduction
The Rotary Mixer is designed for gentle and efficient mixing in laboratories across biological, medical, and chemical engineering fields. Its compact and durable design allows for use inside refrigerators or incubators, making it ideal for temperature-sensitive applications.
Product Features
The Rotary Mixer is designed for gentle and efficient mixing in laboratories across biological, medical, and chemical engineering fields. Its compact and durable design allows for use inside refrigerators or incubators, making it ideal for temperature-sensitive applications.
Product Features
- Gentle and uniform mixing through continuous rotary motion.
- Adjustable rotation angle: 0–90° (single-layer adapter) and 50–90° (double-layer adapter).
- Variable speed control from 0–80 rpm for precise mixing requirements.
- High accuracy and stable speed performance.
- Low-noise operation for a quiet laboratory environment.
- Compatible with multiple tube sizes — 1.5 mL, 2.0 mL, 5 mL, 10 mL, 15 mL, and 50 mL — with freely configurable clip combinations.
- Memory function retains the last operating parameters upon restart.
Product Parameters
| Product Name | Rotary Mixer |
|---|---|
| Environmental temperature | 5°C~40°C |
| Relative humidity | ≤80% |
| Input power | AC100V~AC240V |
| AC power | 50 Hz/60 Hz |
| Output power | 24 V, 1.5 A, 36 W |
| Motor type | Stepper motor |
| Speed range | 10-80 rpm |
| Time range | 1m-99h59m |
| Angle range | 0-90° for single-layer adapter, 50°-90° double-layer adapter |
| Speed display | Digital display |
| Operating mode | Continuous mode |
| Voltage | 100-240 V, 50/60 Hz |
| Input power | 36 W |
| Dimensions | 176×260×306 mm |
| Product weight | 2.45 Kg |
Machine Description

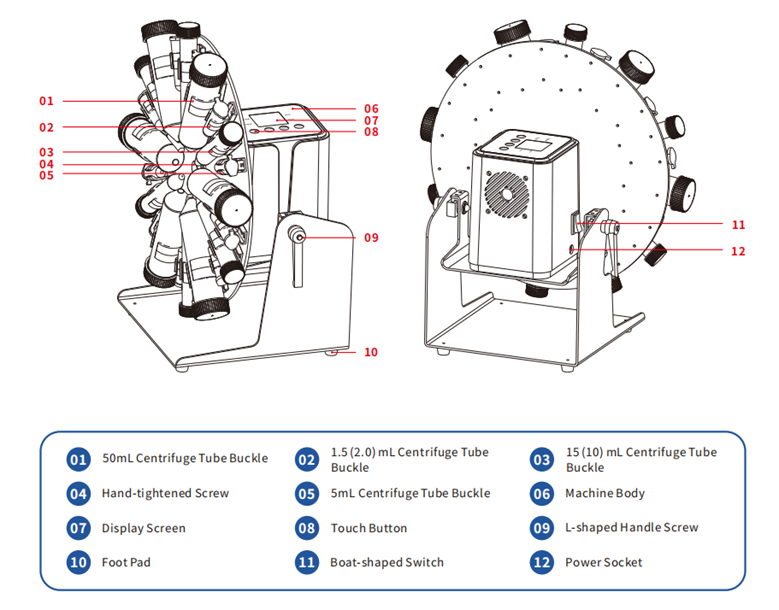

A. Structural Diagram
B. Optional Accessories
| Model | Description | |
|---|---|---|
| Standard Adapter | SMV-R-A | 6×1.5(2.0)mL+6×5mL+6×15(10)mL+6×50mL |
| Optional Adapter | SMV-R-B | 12×1.5(2.0)mL+6×15(10)mL+6×50mL |
| SMV-R-C | 30×1.5(2.0)mL | |
| SMV-R-D | 25×5mL | |
| SMV-R-E | 20×15(10)mL | |
| SMV-R-F | 10×50mL | |
| SMV-R-G | 7×15(10)mL+7×50mL | |
| SMV-R-H | Double-layer tray connecting rod | |
| If you need to customize other models or modules, please get in touch with the supplier | ||
C. Installation Instructions
1. Ensure a good working environment, free from explosive and flammable materials.
2. Open the package and check whether the instrument accessories are complete, then place the instrument on a horizontal workbench.
3. If multiple instruments are used simultaneously, please maintain a distance of more than 25cm between each equipment.
4. Before connecting the instrument to the power supply, please ensure that the input voltage meets the product standard.
5. Before installing the accessories, first turn off the power, gently remove the original accessories, and then connect the replacement accessories with screws. Before each use of the instrument, please confirm that the instrument and its accessories are not damaged.
Operation Guide
I. Place the instrument on a stable, level workbench. Connect the power supply and turn on the power switch.

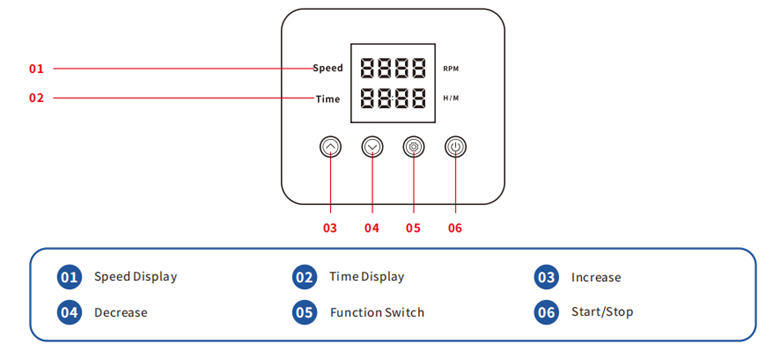

2. Touch the "Function switch" button to select the parameter you want to set, The selected parameter will blink, Use the "increase" or "Decrease" buttons to set it to the desired value.
3. Once the value is set, touch the "Start/Stop" button to start the instrument.
4. The instrument allows adjusting the speed during operation. If you need to adjust the time, you must pause the instrument first and then use the function switch button to set.
5. Loosen the l-shaped handle screw to adjust the angle of the instrument. After adjusting the angle, be sure to tighten the L-shaped handle screw to secure the angle. If you notice any angle changes during use, check if the l-shaped handle screws are tightened. It is important to tighten both sides of the L-shaped handle screws simultaneously for better angle stability.
6. To replace the adapter, remove the hand-twist screw, align the desired adapter with the mounting hole, and then tighten the hand. Twist screw.
7. When installing the double-layer adapter, use the double-layer tray connecting rod. Press the threaded end.
8. The rotator mixer has a locked rotor function. in case of a locked rotor caused by improper operation, the instrument will self-correct and continue running. The correction process takes about 10 s.
9. If the instrument makes a "Dada Dada" noise during operation, it is determined to be caused by loose manual screw nuts. Please tighten the manual screw nuts.
2. Touch the "Function switch" button to select the parameter you want to set, The selected parameter will blink, Use the "increase" or "Decrease" buttons to set it to the desired value.
3. Once the value is set, touch the "Start/Stop" button to start the instrument.
4. The instrument allows adjusting the speed during operation. If you need to adjust the time, you must pause the instrument first and then use the function switch button to set.
5. Loosen the l-shaped handle screw to adjust the angle of the instrument. After adjusting the angle, be sure to tighten the L-shaped handle screw to secure the angle. If you notice any angle changes during use, check if the l-shaped handle screws are tightened. It is important to tighten both sides of the L-shaped handle screws simultaneously for better angle stability.
6. To replace the adapter, remove the hand-twist screw, align the desired adapter with the mounting hole, and then tighten the hand. Twist screw.
7. When installing the double-layer adapter, use the double-layer tray connecting rod. Press the threaded end.
8. The rotator mixer has a locked rotor function. in case of a locked rotor caused by improper operation, the instrument will self-correct and continue running. The correction process takes about 10 s.
9. If the instrument makes a "Dada Dada" noise during operation, it is determined to be caused by loose manual screw nuts. Please tighten the manual screw nuts.

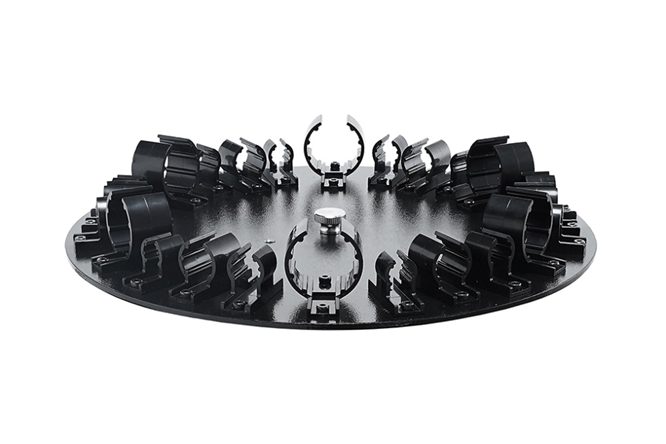

Standard Adapter
(SMV-R-A 6×1.5(2.0)mL+6×5mL+6×15(10)mL+6×50mL)
(SMV-R-A 6×1.5(2.0)mL+6×5mL+6×15(10)mL+6×50mL)

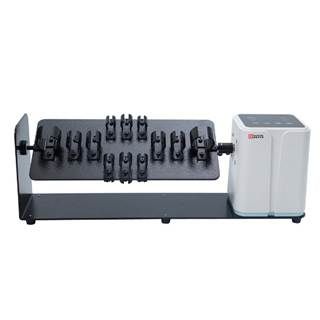

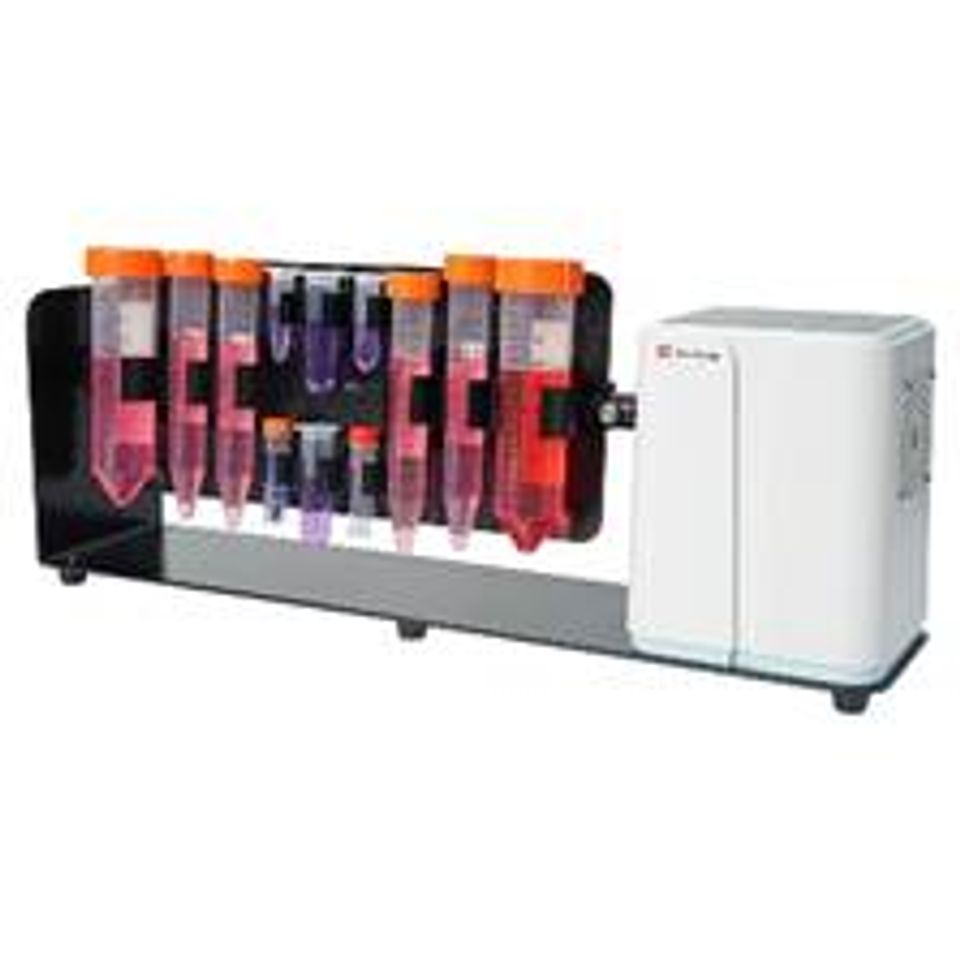

Vertical Mixer
Manufactured by: Servicebio
Cat. No.: BE-SMV-P
Cat. No.: BE-SMV-P
Product Introduction
The Vertical Mixer is designed for gentle, efficient, and uniform mixing across various applications in the biological, medical, and chemical industries. Its versatile design allows operation within refrigerators or incubators, making it ideal for temperature-controlled experiments.
Product Features
The Vertical Mixer is designed for gentle, efficient, and uniform mixing across various applications in the biological, medical, and chemical industries. Its versatile design allows operation within refrigerators or incubators, making it ideal for temperature-controlled experiments.
Product Features
- Gentle and thorough rotary mixing for consistent results.
- Adjustable speed ranges from 10–80 rpm for different experimental needs.
- Precise and stable speed control.
- Low-noise operation for a quiet laboratory environment.
- Compatible with multiple centrifuge tube sizes — 1.5 mL, 2.0 mL, 5 mL, 10 mL, 15 mL, and 50 mL — with freely configurable clamp combinations.
- Memory function retains the previous operating parameters upon restart.
- Suitable for use inside refrigerators and incubators.
- Ideal for a wide range of applications, including IP, Co-IP, CHIP, protein and antibody purification, extraction, tissue culture, blood sample anticoagulation, and latex turbidity assays.
Product Parameters
| Product Name | Vertical Mixer |
|---|---|
| Environmental temperature | 5°C~40°C |
| Relative humidity | ≤80% |
| Input power | AC100V~AC240V |
| AC power | 50 Hz/60 Hz |
| Output power | 24 V, 1.5 A, 36 W |
| Motor type | Stepper motor |
| Speed range | 10-80 rpm |
| Time range | 1m-99h59m |
| Speed display | Digital display |
| Operating mode | Continuous mode |
| Voltage | 100-240 V, 50/60 Hz |
| Input power | 36 W |
| Dimensions | 395×90×136 mm |
| Product weight | 1.77 Kg |
Machine Description

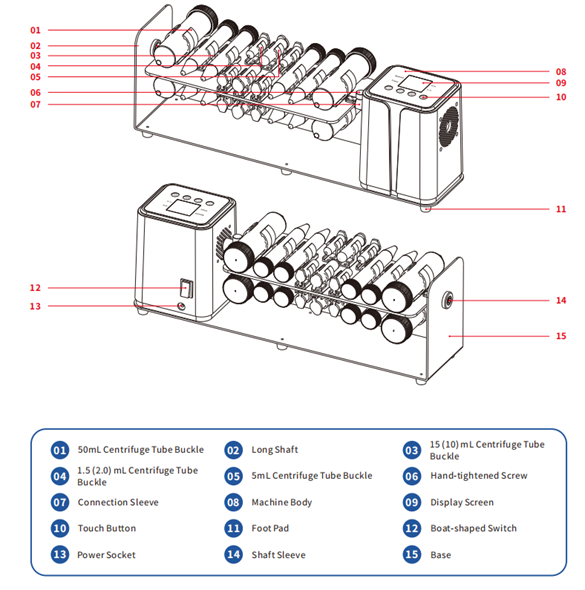

1. Structural Diagram
B. Optional Accessories
| Model | Description | |
|---|---|---|
| Standard Adapter | SMV-P-A | 8×1.5(2.0)mL+4×5mL+8×15(10)mL+4×50mL |
| Optional Adapter | SMV-P-B | 12×1.5(2.0)mL+8×15(10)mL+4×50mL |
| SMV-P-C | 40×1.5(2.0)mL | |
| SMV-P-D | 40×5mL | |
| SMV-P-E | 18×15(10)mL | |
| SMV-P-F | 12×50mL | |
| SMV-P-G | 6×15(10)mL+8×50mL | |
| SMV-P-H | 4×Microplate(96 Deep Well Plate,PCR Plate, ELISA Plate) | |
| If you need to customize other models or modules, please get in touch with the supplier | ||
C. Installation Instructions
1. Ensure a good working environment, free from explosive and flammable materials.
2. Open the package and check whether the instrument accessories are complete, then place the instrument on a horizontal workbench.
3. If multiple instruments are used at the same time, please maintain a distance of more than 25cm between each equipment.
4. Before connecting the instrument to the power supply, please ensure that the input voltage meets the product standard.
5. Before installing the accessories, first turn off the power, gently remove the original accessories, and then connect the replacement accessories with screws. Before each use of the instrument, please confirm that the instrument and its accessories are not damaged.
Operation Guide
1. Place the instrument on a stable. level workbench, Connect the power supply and turn on the power switch.

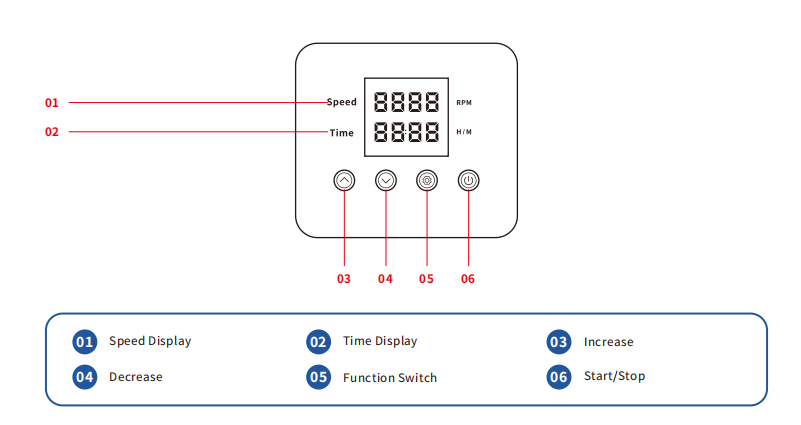

2. Touch the "Function switch" button to select the parameter you want to set. The selected parameter will blink. Use the "Increase" or " Decrease" buttons to set it to the desired value.
3. Once the value is set, touch the "Start/Stop" button to start the instrument.
4. The instrument allows adjusting the speed during operation. If you need to adjust the time, you must pause the instrument first and then use the function switch button to set.
5. If you need to replace the adapter, unscrew the hand-twist screws and move the entire adapter toward the shaft sleeve. then lift it out at an angle. When replacing, first pass the long shaft through the shaft sleeve. If the travel is not enough, pull the base slightly outward to facilitate the shaft entering the connecting sleeve, Align the holes and tighten the screws to secure it.
6. When taking or placing centrifuge tubes, please ensure the instrument is in a stopped state. If the instrument becomes jammed due to improper operation, the instrument should be paused and then restarted to resume operation.
2. Touch the "Function switch" button to select the parameter you want to set. The selected parameter will blink. Use the "Increase" or " Decrease" buttons to set it to the desired value.
3. Once the value is set, touch the "Start/Stop" button to start the instrument.
4. The instrument allows adjusting the speed during operation. If you need to adjust the time, you must pause the instrument first and then use the function switch button to set.
5. If you need to replace the adapter, unscrew the hand-twist screws and move the entire adapter toward the shaft sleeve. then lift it out at an angle. When replacing, first pass the long shaft through the shaft sleeve. If the travel is not enough, pull the base slightly outward to facilitate the shaft entering the connecting sleeve, Align the holes and tighten the screws to secure it.
6. When taking or placing centrifuge tubes, please ensure the instrument is in a stopped state. If the instrument becomes jammed due to improper operation, the instrument should be paused and then restarted to resume operation.

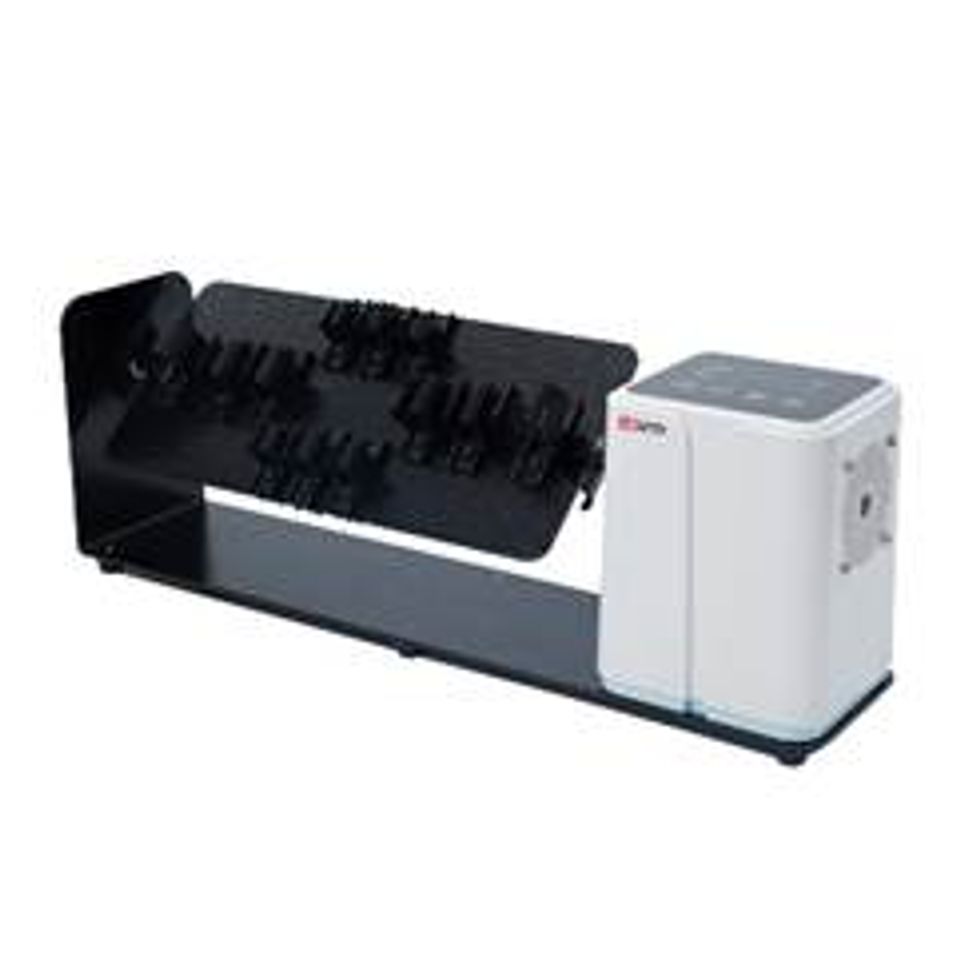

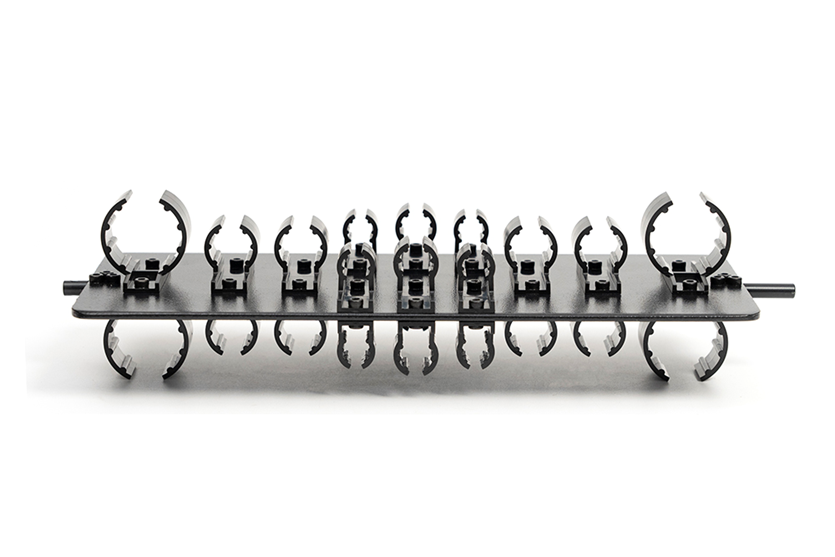

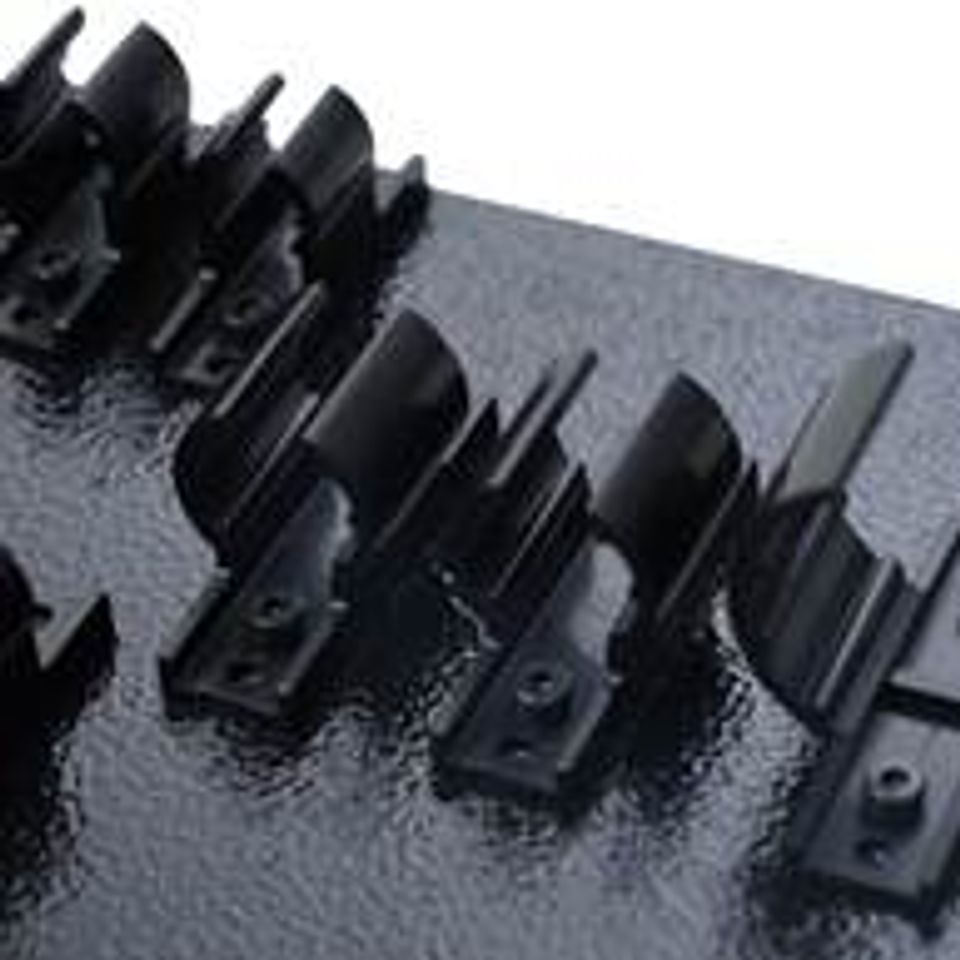

Standard Adapter
(SMV-P-A 8×1.5(2.0)mL+4×5mL+8×15(10)mL+4×50mL)
(SMV-P-A 8×1.5(2.0)mL+4×5mL+8×15(10)mL+4×50mL)
