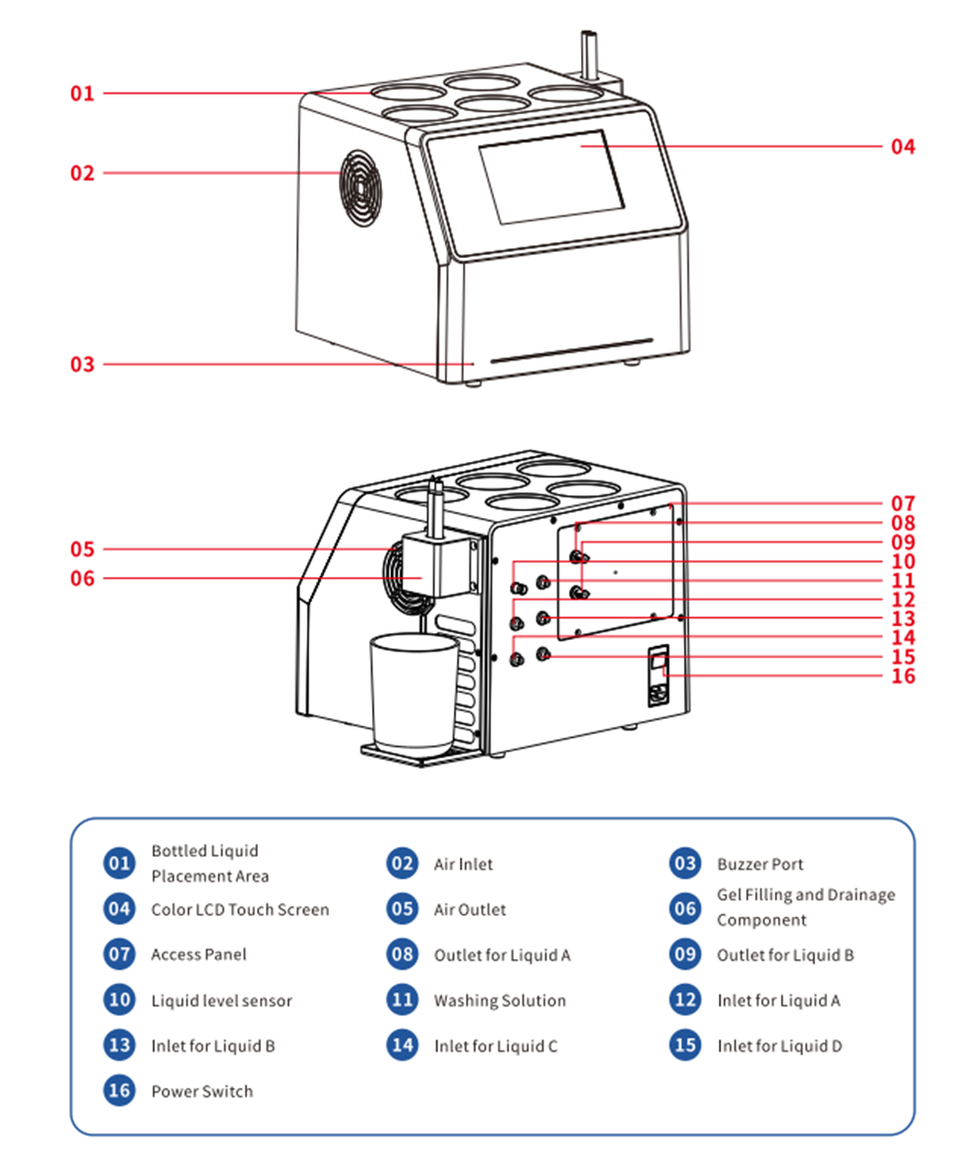

| Product Name | Gel Casting System |
|---|---|
| Cat. No. | BE-T-20 PLUS |
| Applications | The system enables production of both gradient and uniform (non-gradient) polyacrylamide gels for Western blot applications. |
| Gel Concentration Range | 4%～20% |
| Gel Specifications | Mini-sized gel, thickness of 0.75mm/1.0mm/1.5mm |
| Gel Electrophoresis Time | Approx. 40s per gel |
| Reagent Bottle Rack | Includes five 500 mL wide-mouth, round-shouldered reagent bottles (four for reagents and one for cleaning), plus one 500 mL waste liquid beaker. |
| Automatic Cleaning | Features automatic flushing of mixing lines during gel filling intervals to prevent premature gelation, along with convenient one-touch line cleaning. |
| Automatic Pre-filling | Enables automatic filling of gel lines for consistent and efficient operation. |
| Fault Indication | Equipped with fault indication function |
| Operation Mode | 7-inch color LCD touchscreen with English interface. |
| Operating Environment Temperature | 10℃ to 40℃ |
| Input Voltage | 100~240VAC, 50/60Hz |
| Rated Power | 270W |
| Dimensions | 305×305×270mm |
| Weight | 12.5Kg |
| Product Number | Description |
|---|---|
| BE-T20PLUS | Gel Casting System (4%-20% GEL) |
| BE-BVE-4-ZJ | Gel Casting Stand |
| Part Number | Description | Volume |
|---|---|---|
| BE-G2181-2.5L | Gel Casting System Solution Kit | 2.5 L |
| BE-G2181-1 | Gel Casting System Solution Set Solution A | 500mL |
| BE-G2181-2 | Gel Casting System Solution Set Solution B | 500mL |
| BE-G2181-3 | Gel Casting System Solution Set Solution C (powder) | 4×1g |
| Reagent Bottle with 500mL Pure Water | 500 mL×2 | |
| BE-G2181-4 | Gel Casting System Solution Set Solution D | 500mL |
| Part Number | Gel Thickness |
|---|---|
| BE-G6052-0.75T | 0.75mm |
| BE-G6052-1.0T | 1mm |
| BE-G6052-1.5T | 1.5mm |

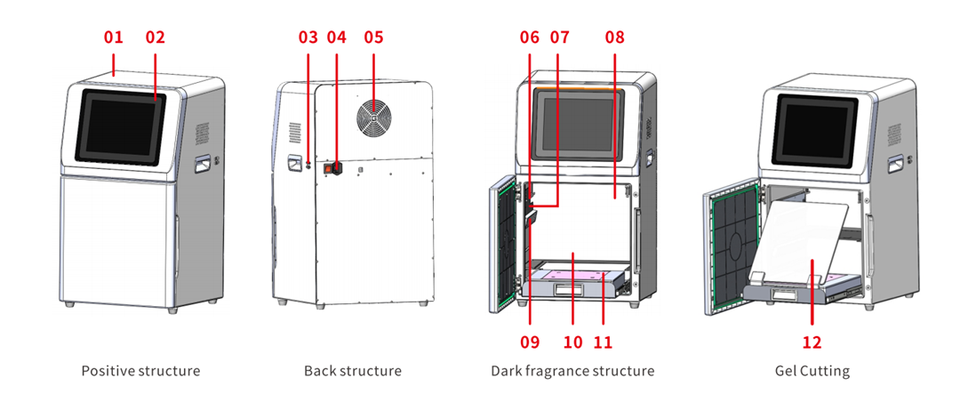

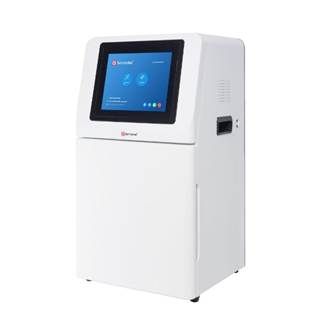

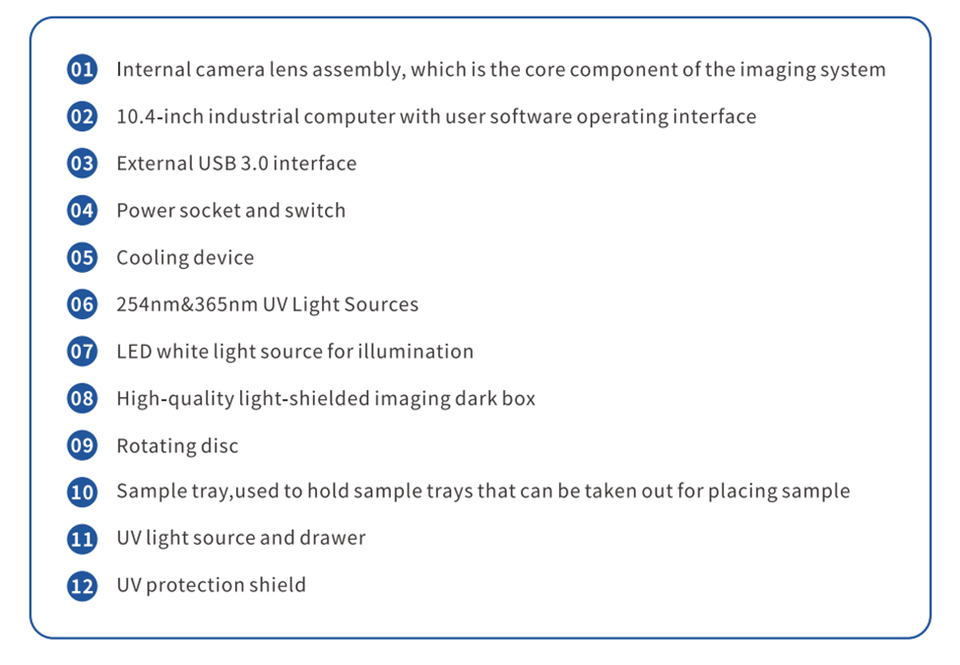

| Product Name | Multi-functional Imaging System |
| Cat. No. | BE-W5000 PLUS |
| Dimensions | 400×371×700 mm |
| Camera, Pixel Resolution | 9 million |
| Camera, Resolution | 2992×3000 |
| Camera, Pixel Size | 3.76×3.76μm |
| Camera, Target Size | 1“(11.28×11.28 mm) |
| Camera, Full Well Capacity | 16.5ke-(HCG),50.5ke-(LCG) |
| Camera, Sensitivity | 877mv@1/30s |
| Camera, Readout Noise | 1.24e-(HCG), 3.22e-(LCG) |
| Camera, Dark Current | 0.0003e-/s/pixel@-15℃ |
| Camera, Signal-to-Noise Ratio | 42.2dB (HCG), 47dB (LCG) |
| Camera, Exposure Time | 0.1ms~1h |
| Camera, Binning Mode | 1×1,2×2,3×3 |
| Camera, Grayscale | 16-bit (65536 levels) |
| Camera, Cooling | Relative to Ambient Temperature -40°c |
| Camera, Type | Black and White Camera |
| Lens Aperture | F0.95-F16 |
| Lens Focal Length | 17mm |
| Lens Type | Motorized zoom lens |
| Bright Field Light source | Downward-facing white LED light sources, symmetrically arranged on both sides. |
| Ultraviolet Light Source | 310 nm LED array providing uniform transmitted illumination, with 254 nm and 365 nm LED ultraviolet light sources symmetrically positioned on both sides. |
| Dark Box, Light Isolation | Completely light-sealed to effectively isolate external environmental light. |
| Dark Box, Door Control | The door control sensor can control the on/off of the bright field light source. |
| Dark Box, Rotating Disc | The filter can be switched according to the selected mode to accommodate both chemiluminescence and gel imaging applications. |
| Dark Box, Field of View | Effective field of view for membrane, protein gel, and nucleic acid gel imaging is 140mm x 140mm |
| Dark Box, Gel Cutting | After opening the door, the UV light source can be removed and used in conjunction with a UV protective board for adhesive cutting. |
| Software Functions, Exposure Modes |
High Quality: Delivers the highest image resolution and clarity. Standard: Optimizes the balance between image quality and exposure speed. High Sensitivity: Enables the fastest exposure speed. |
| Auto Exposure | Intelligent exposure technology automatically determines the optimal exposure time. By combining time imaging and time accumulation functions, users can obtain optimal image results with a single operation. |
| Software Functions, Real-time imaging |
Real-time display of signal changes during exposure enables detailed observation of the capture process. Overexposed regions are automatically highlighted for clear identification. |
| Software Functions, Time imaging |
After exposure, all frame images captured during the exposure period can be generated. Through precise retrospective adjustments, users can select any frame image as the final output. |
| Software Functions, Time Accumulation |
For underexposed samples, users can extend the exposure after the initial cycle, allowing additional exposure on top of the already applied time. |
| Industrial Computer | 10.4"display (1024x768) Windows 10 0s 16GB RAM, 512GB SSD, Integrated Bluetooth/Wi-Fi |
| External Interfaces | USB 3.0×2 |
| Operating Voltage | 90~132VAC/180~264VAC (selectable viaswitch), 47~63Hz |
| Product Power | ≤300W |
| Product Net Weight | 30.65 Kg |
| Part Number | Description |
|---|---|
| BE-T20PLUS | Gel Casting System (4%-20% GEL) |
| BE-BVE-4-ZJ | Gel Casting Stand |
| BE-SPW-DM | Electrophoresis Power Supply (Dual Mode) |
| BE-SPW-DSE | Electrophoresis Power Supply (Dual Mode, Programmable) |
| BE-SPW-6S | Electrophoresis Power Supply (Output Ports Connected in Parallel) |
| BE-SVE-2 | Vertical Electrophoresis System (for 2 gels) |
| BE-SVE-4 | Vertical Electrophoresis System (for 4 gels) |
| BE-BE-4 | Vertical Electrophoresis System (for 4 gels) |
| BE-SVT-2 | Transfer Electrophoresis System (for 2membranes) |
| BE-SVT-4 | Transfer Electrophoresis System (for 4 membranes) |
| BE-BVT-4 | Transfer Electrophoresis System (for 4 membranes) |
| BE-DS-3D100 | Multifunctional Shaker |
