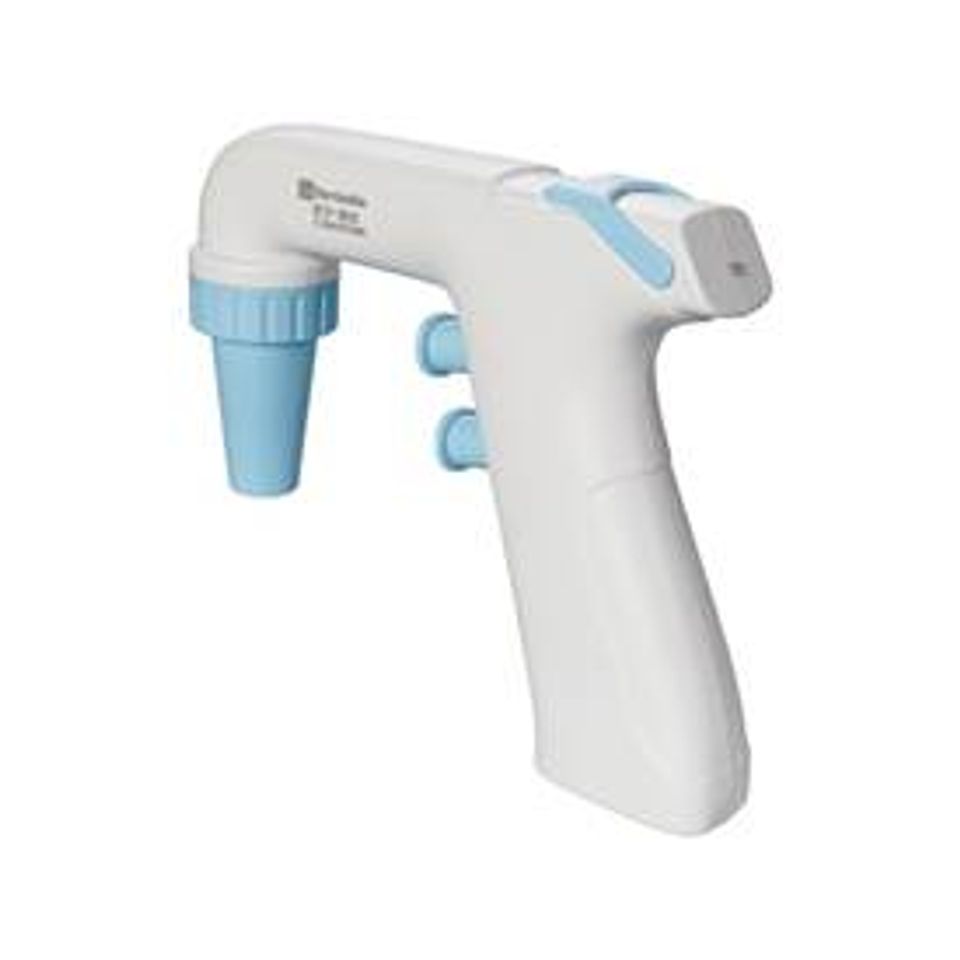

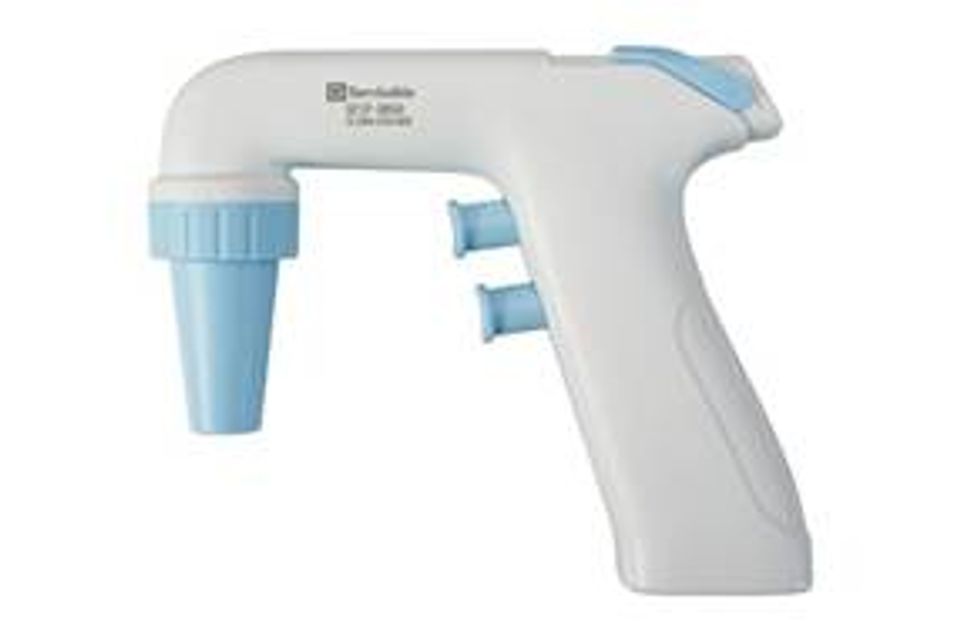

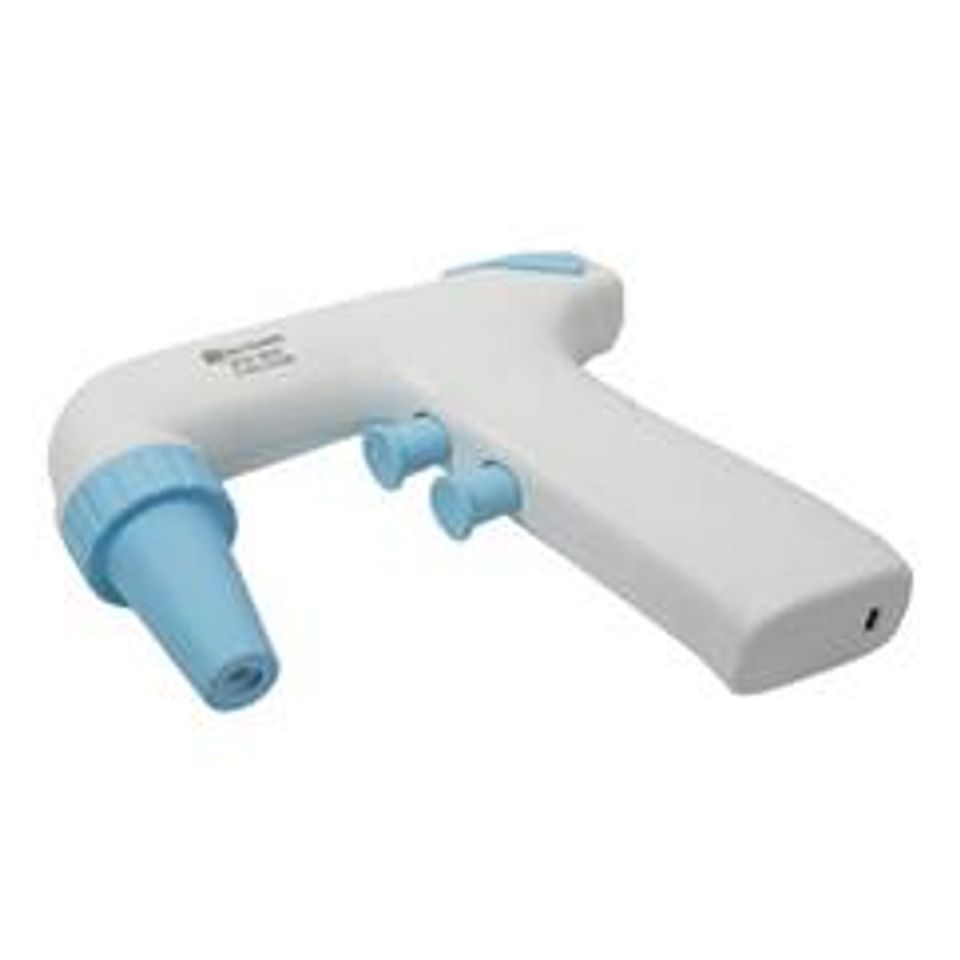

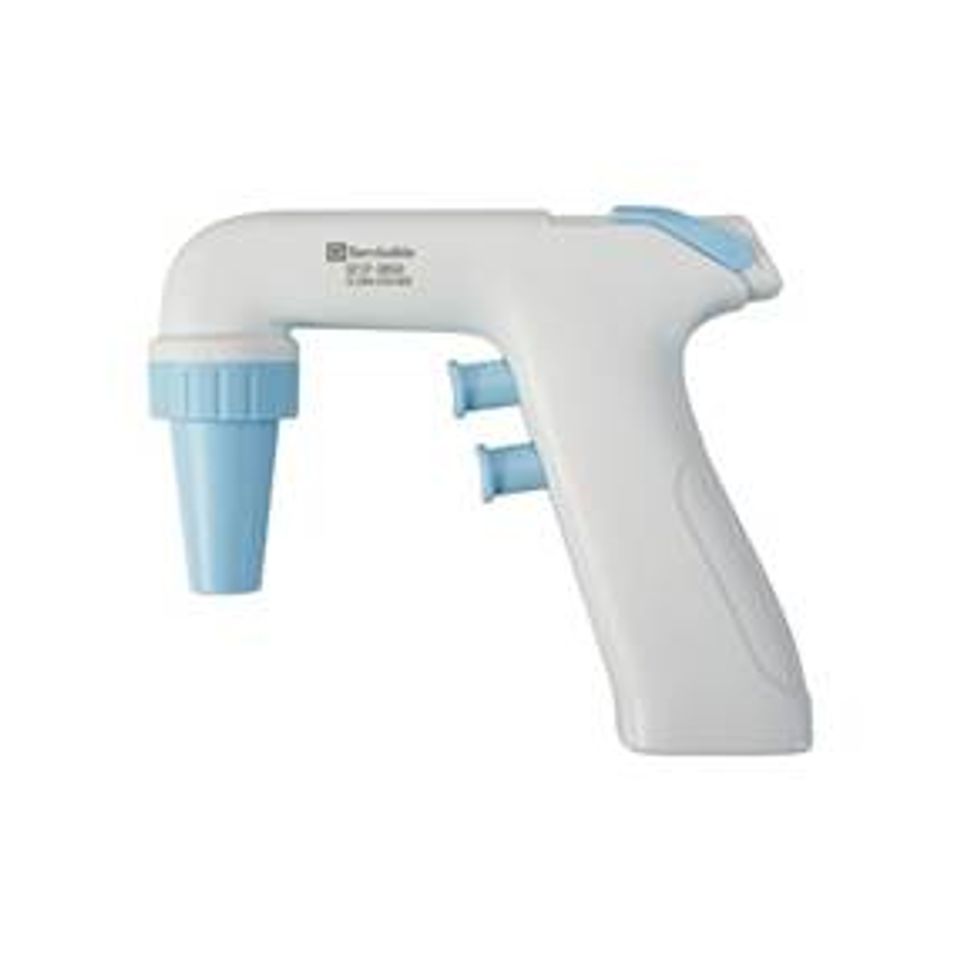

Electronic Pipette Plus
Cat. No. : SPIP-DE50
Brand : Servicebio
I. Product Introduction
This product features an integrated, compact, and ergonomic design for ease of use. It is compatible with plastic or glass serological pipettes as well as Pasteur pipettes ranging from 1 mL to 100 mL. The aspiration and dispensing speed can be precisely controlled by adjusting the applied pressure, and gravity drainage is also supported for flexible operation.
This product features an integrated, compact, and ergonomic design for ease of use. It is compatible with plastic or glass serological pipettes as well as Pasteur pipettes ranging from 1 mL to 100 mL. The aspiration and dispensing speed can be precisely controlled by adjusting the applied pressure, and gravity drainage is also supported for flexible operation.
II. Product Features
- Wide compatibility – Suitable for use with a variety of standard serological pipettes.
- Intuitive operation – Dual-button control allows independent aspiration and dispensing. The speed of liquid handling can be adjusted by varying pressure on the buttons, and aspiration/dispensing stops immediately upon release. The pressure-sensitive variable speed control ensures simple and precise operation.
- LED battery indicator – Clearly displays the pipette’s battery status for easy monitoring.
- Hydrophobic filter protection – Equipped with a 0.22 μm hydrophobic membrane filter to prevent liquid backflow and protect the instrument.
- Long battery life – Powered by a high-capacity lithium battery for extended, uninterrupted operation.
- Convenient charging – Features a Type-C charging port for fast, reliable, and widely compatible charging.
- Built-in stand – Includes an integrated stand for safe and convenient placement when not in use.
- Dual drainage modes – Supports both gravity drainage and motor-assisted drainage, with easy switching between the two modes.
III. Parameters
| Battery Level Display | LED Indicator |
| Motor Type | Miniature vacuum pump |
| Aspiration Speed | 50mL<10s |
| Drainage Speed | Motor-driven / Gravity |
| Battery | Input: DC5V/≤0.8A; Capacity: 1800mA |
| Speed Control | Pressure-sensitive infinite speed adjustment |
| Battery Life | 3 weeks of intermittent operation |
| Charging Time | Approximately 1.6h |
| Compatible Pipette | Serological (1mL-100mL)； |
| Filter | 0.22μm, Hydrophobic PTFE membrane |
| Weight | 185g |

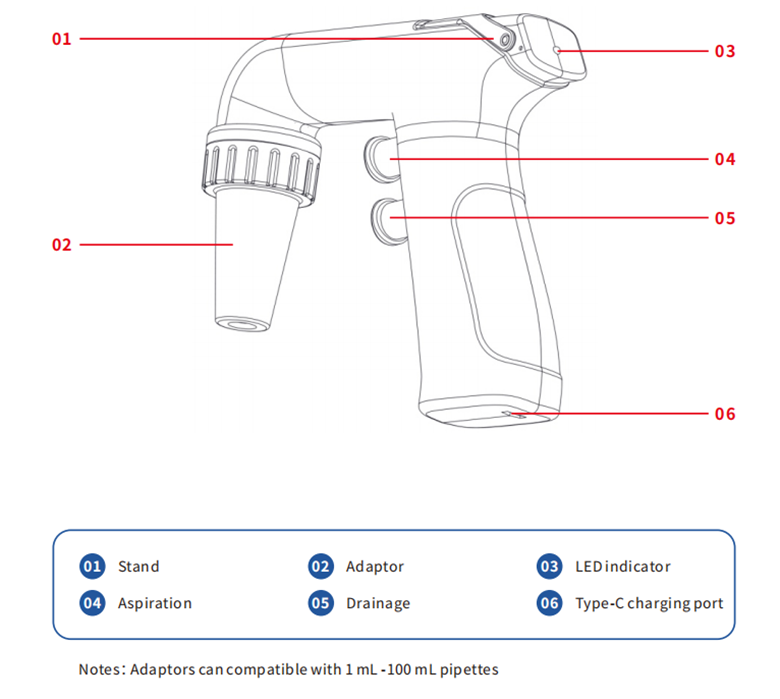

IV. Product Structure
V. Operation Guide
5.1 Aspiration & Speed Adjustment

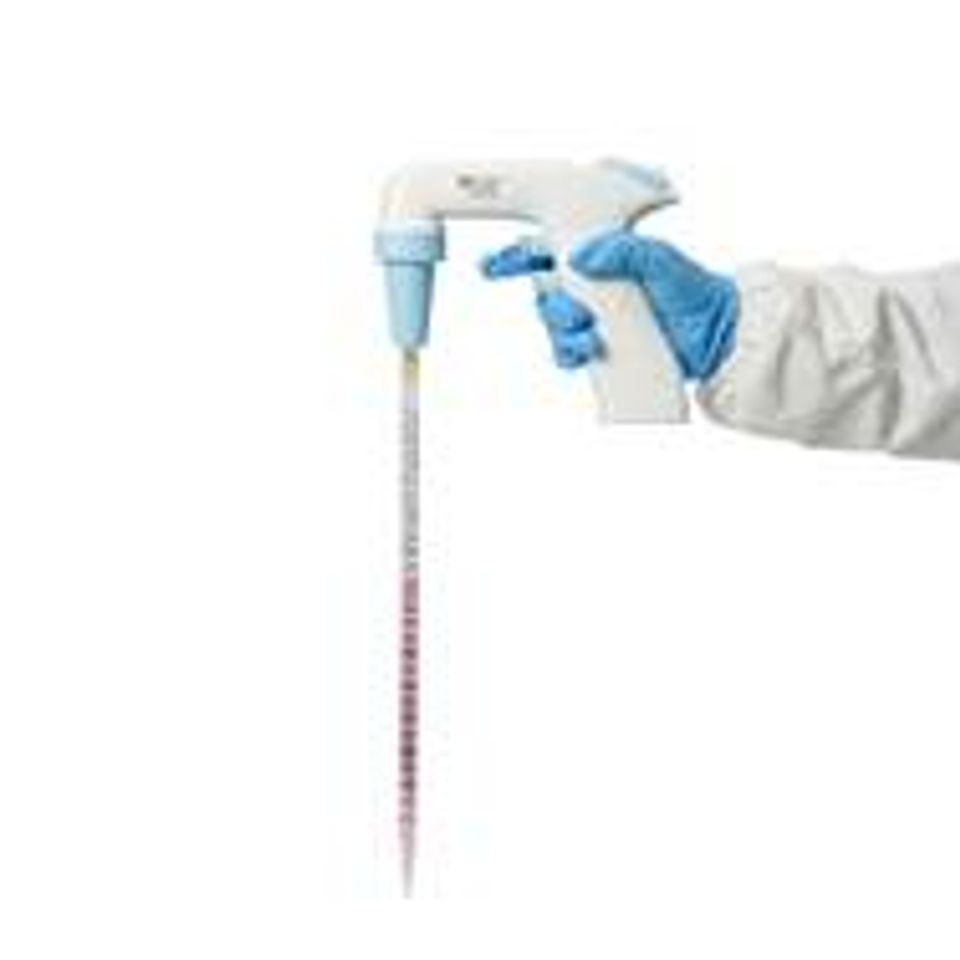

After inserting the pipette into the adaptor, place it in the target liquid and press the aspiration button, the pipette will aspirate the liquid. The greater the pressing distance and force, the faster the liquid will be aspirated; conversely, a smaller pressing distance and force will result in slower aspiration.
5.2 Drainage & Speed Adjustment
Press the drainage button to dispense the liquid. There are two modes to choose from during the drainage process: gravity drainage mode and power drainage mode.
1. Gravity drainage mode: lightly press the drainage button and apply slight pressure, allowing the liquid to naturally flow out due to its own weight.
2. Power drainage mode: under gravity drainage mode, further press the drainage button to trigger the operation of the miniature pump, thereby accelerating the drainage speed.
5.3 LED Indicator Display Battery Level
5.1 Aspiration & Speed Adjustment
After inserting the pipette into the adaptor, place it in the target liquid and press the aspiration button, the pipette will aspirate the liquid. The greater the pressing distance and force, the faster the liquid will be aspirated; conversely, a smaller pressing distance and force will result in slower aspiration.
5.2 Drainage & Speed Adjustment
Press the drainage button to dispense the liquid. There are two modes to choose from during the drainage process: gravity drainage mode and power drainage mode.
1. Gravity drainage mode: lightly press the drainage button and apply slight pressure, allowing the liquid to naturally flow out due to its own weight.
2. Power drainage mode: under gravity drainage mode, further press the drainage button to trigger the operation of the miniature pump, thereby accelerating the drainage speed.
5.3 LED Indicator Display Battery Level
During Pipetting Operation
| Battery Level | LED Indicator Display |
|---|---|
| >20% | Light on |
| ≤20% | Rapid flashing |
During Charging
| Battery Level | LED Indicator Display |
|---|---|
| >80% | Slow flashing |
| ≤80% | Light on |

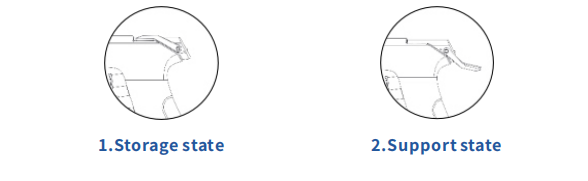

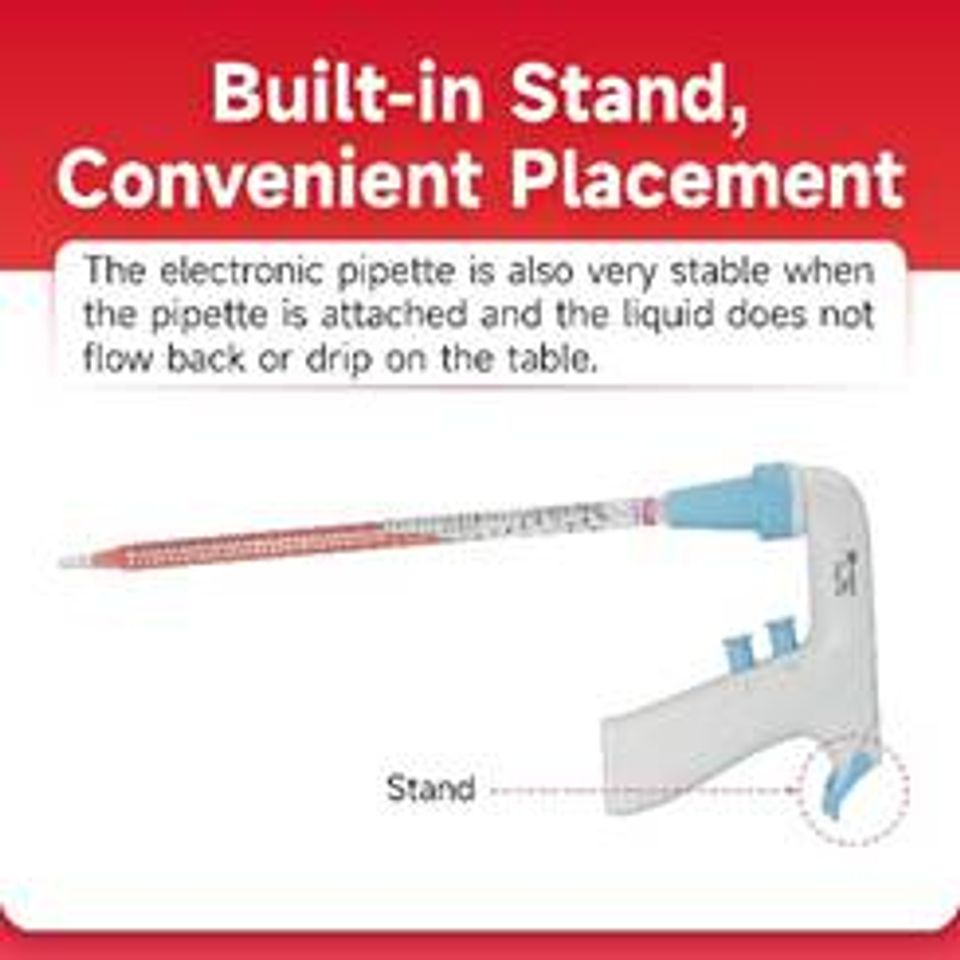

5.4 Usage of the stand
The stand has only two stable states.
The stand has only two stable states.
- Storage state: The stand is aligned with the pipette gun.
- Support state: When the stand is needed, rotate it to the support position.
5.5 Compatible Consumables
Serological Pipettes
Serological Pipettes
