Servicebio Capital Equipment

BE-T-20 PLUS Gel Casting System
BEI-T-20 PLUS Gel Casting System

Gel Casting System

Manufactured by: Servicebio

The system enables preparation of both 4%–20% gradient gels and isocratic gels at a wide range of concentrations. Reagents are mixed in real time, and the system automatically adjusts polymerization time based on ambient temperature to prevent premature solidification. A compatible reagent kit is included for ease of use.
Cat. No. : BE-T-20 PLUS

Product Introduction

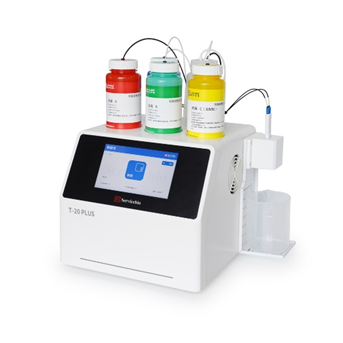

BE-T-20 PLUS Gel Casting System

The T-20 Gel Casting System offers a compact design for easy storage, quick setup, and portability. It is compatible with multiple glass plate thicknesses (0.75 mm, 1.0 mm, and 1.5 mm) and supports both rapid single-gel preparation and efficient batch casting, making it an ideal choice for laboratory use.

Product Features

  • Prepares both gradient and isocratic gels across a wide concentration range (4%–20%).
  • User-friendly settings with real-time reagent mixing to prevent premature solidification and ensure consistent gel quality.
  • Compatible reagent kit enables continuous preparation of up to 260 gels.


Product Name Gel Casting System
Cat. No. BE-T-20 PLUS
Applications The system enables production of both gradient and uniform (non-gradient) polyacrylamide gels for Western blot applications.
Gel Concentration Range 4%～20%
Gel Specifications Mini-sized gel, thickness of 0.75mm/1.0mm/1.5mm
Gel Electrophoresis Time Approx. 40s per gel
Reagent Bottle Rack Includes five 500 mL wide-mouth, round-shouldered reagent bottles (four for reagents and one for cleaning), plus one 500 mL waste liquid beaker.
Automatic Cleaning Features automatic flushing of mixing lines during gel filling intervals to prevent premature gelation, along with convenient one-touch line cleaning.
Automatic Pre-filling Enables automatic filling of gel lines for consistent and efficient operation.
Fault Indication Equipped with fault indication function
Operation Mode 7-inch color LCD touchscreen with English interface.
Operating Environment Temperature 10℃ to 40℃
Input Voltage 100~240VAC, 50/60Hz
Rated Power 270W
Dimensions 305×305×270mm
Weight 12.5Kg


Gel Casting T-20PLUS System

Product Number Description
BE-T20PLUS Gel Casting System (4%-20% GEL)
BE-BVE-4-ZJ Gel Casting Stand


Optional Items

Part Number Description Volume
BE-G2181-2.5L Gel Casting System Solution Kit 2.5 L
BE-G2181-1 Gel Casting System Solution Set Solution A 500mL
BE-G2181-2 Gel Casting System Solution Set Solution B 500mL
BE-G2181-3 Gel Casting System Solution Set Solution C (powder) 4×1g
Reagent Bottle with 500mL Pure Water 500 mL×2
BE-G2181-4 Gel Casting System Solution Set Solution D 500mL


Glass Cassettes

Part Number Gel Thickness
BE-G6052-0.75T 0.75mm
BE-G6052-1.0T 1mm
BE-G6052-1.5T 1.5mm


Product Structure

Image (1)
BE-SCG-W5000 PLUS Multi-functional Imaging System
BE-SCG-W5000 PLUS Multi-functional Imaging System

Multi-Functional Imaging System

Manufactured by: Servicebio

Integrated with a chemiluminescence system and a gel imaging system, it can be used for experiments such as Western Blotting membrane detection, nucleic acid gel imaging/gel cutting, and protein gel imaging.
Cat. No. : BE-SCG-W5000 PLUS

Product Introduction

Chemiluminescence Imaging System
  • Efficient Western Blot Imaging – Capture results from a single imaging session regardless of signal intensity. Weak signals can be enhanced by extending exposure time, while strong signals can be retrospectively adjusted within the exposure timeline.
  • High Throughput – Image up to 10 or more membranes simultaneously, maximizing efficiency and reducing the need for multiple instruments.
  • Color Marker Imaging – Provides highly sensitive detection for both strong and weak signals.
  • Marker Optimization Function – Eliminates non-specific binding between pre-stained markers and antibodies, while enabling adjustment of over- or underexposed luminescent marker signals.
  • Flexible Reprocessing – All source files are saved, allowing post-experiment adjustment of band thickness or intensity for optimal data presentation.
  • Protein Gel Imaging – Captures both color and monochrome protein gels, with color imaging offering intuitive visualization.
  • Nucleic Acid Gel Imaging – Equipped with 310/254/365 nm LED UV light sources, compatible with common dyes (EB, SerRed, SerBlue, GoldView, SYBR Green). LED UV ensures uniform illumination, superior image quality, and extended lamp lifespan.
  • Safe Nucleic Acid Gel Excision – Includes a standard UV laser protection plate (> OD7 cutoff depth), providing enhanced safety during gel cutting.



Technical Specifications

Product Name Multi-functional Imaging System
Cat. No. BE-W5000 PLUS
Dimensions 400×371×700 mm
Camera, Pixel Resolution 9 million
Camera, Resolution 2992×3000
Camera, Pixel Size 3.76×3.76μm
Camera, Target Size 1“(11.28×11.28 mm)
Camera, Full Well Capacity 16.5ke-(HCG),50.5ke-(LCG)
Camera, Sensitivity 877mv@1/30s
Camera, Readout Noise 1.24e-(HCG), 3.22e-(LCG)
Camera, Dark Current 0.0003e-/s/pixel@-15℃
Camera, Signal-to-Noise Ratio 42.2dB (HCG), 47dB (LCG)
Camera, Exposure Time 0.1ms~1h
Camera, Binning Mode 1×1,2×2,3×3
Camera, Grayscale 16-bit (65536 levels)
Camera, Cooling Relative to Ambient Temperature -40°c
Camera, Type Black and White Camera
Lens Aperture F0.95-F16
Lens Focal Length 17mm
Lens Type Motorized zoom lens
Bright Field Light source Downward-facing white LED light sources, symmetrically arranged on both sides.
Ultraviolet Light Source 310 nm LED array providing uniform transmitted illumination, with 254 nm and 365 nm LED ultraviolet light sources symmetrically positioned on both sides.
Dark Box, Light Isolation Completely light-sealed to effectively isolate external environmental light.
Dark Box, Door Control The door control sensor can control the on/off of the bright field light source.
Dark Box, Rotating Disc The filter can be switched according to the selected mode to accommodate both chemiluminescence and gel imaging applications.
Dark Box, Field of View Effective field of view for membrane, protein gel, and nucleic acid gel imaging is 140mm x 140mm
Dark Box, Gel Cutting After opening the door, the UV light source can be removed and used in conjunction with a UV protective board for adhesive cutting.
Software
Functions, Exposure Modes		 High Quality: Delivers the highest image resolution and clarity.
Standard: Optimizes the balance between image quality and exposure speed.
High Sensitivity: Enables the fastest exposure speed.
Auto Exposure Intelligent exposure technology automatically determines the optimal exposure time. By combining time imaging and time accumulation functions, users can obtain optimal image results with a single operation.
Software
Functions, Real-time imaging		 Real-time display of signal changes during exposure enables detailed observation of the capture process. Overexposed regions are automatically highlighted for clear identification.
Software
Functions, Time imaging		 After exposure, all frame images captured during the exposure period can be generated. Through precise retrospective adjustments, users can select any frame image as the final output.
Software
Functions, Time Accumulation		 For underexposed samples, users can extend the exposure after the initial cycle, allowing additional exposure on top of the already applied time.
Industrial Computer 10.4"display (1024x768) Windows 10 0s 16GB RAM, 512GB SSD, Integrated Bluetooth/Wi-Fi
External Interfaces USB 3.0×2
Operating Voltage 90~132VAC/180~264VAC (selectable viaswitch), 47~63Hz
Product Power ≤300W
Product Net Weight 30.65 Kg


Optional Items

Part Number Description
BE-T20PLUS Gel Casting System (4%-20% GEL)
BE-BVE-4-ZJ Gel Casting Stand
BE-SPW-DM Electrophoresis Power Supply (Dual Mode)
BE-SPW-DSE Electrophoresis Power Supply (Dual Mode, Programmable)
BE-SPW-6S Electrophoresis Power Supply (Output Ports Connected in Parallel)
BE-SVE-2 Vertical Electrophoresis System (for 2 gels)
BE-SVE-4 Vertical Electrophoresis System (for 4 gels)
BE-BE-4 Vertical Electrophoresis System (for 4 gels)
BE-SVT-2 Transfer Electrophoresis System (for 2membranes)
BE-SVT-4 Transfer Electrophoresis System (for 4 membranes)
BE-BVT-4 Transfer Electrophoresis System (for 4 membranes)
BE-DS-3D100 Multifunctional Shaker

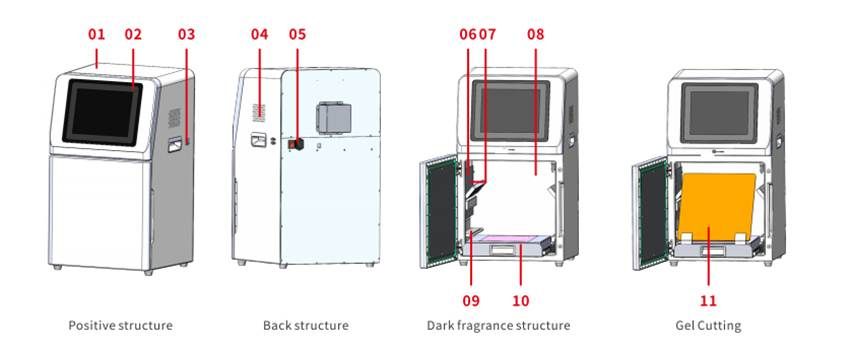

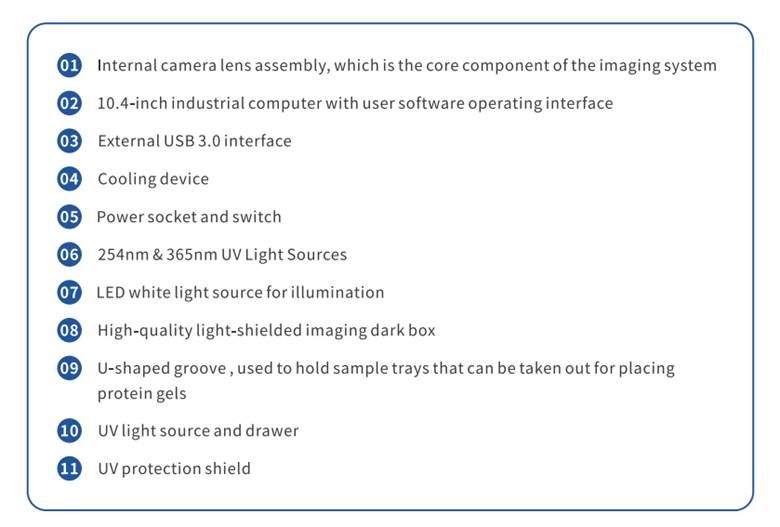

Functional Description

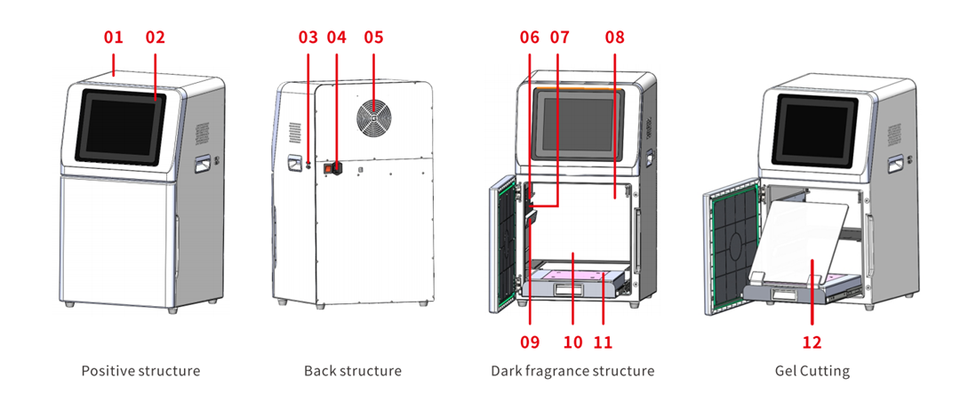

Be scg w5000 plus 1

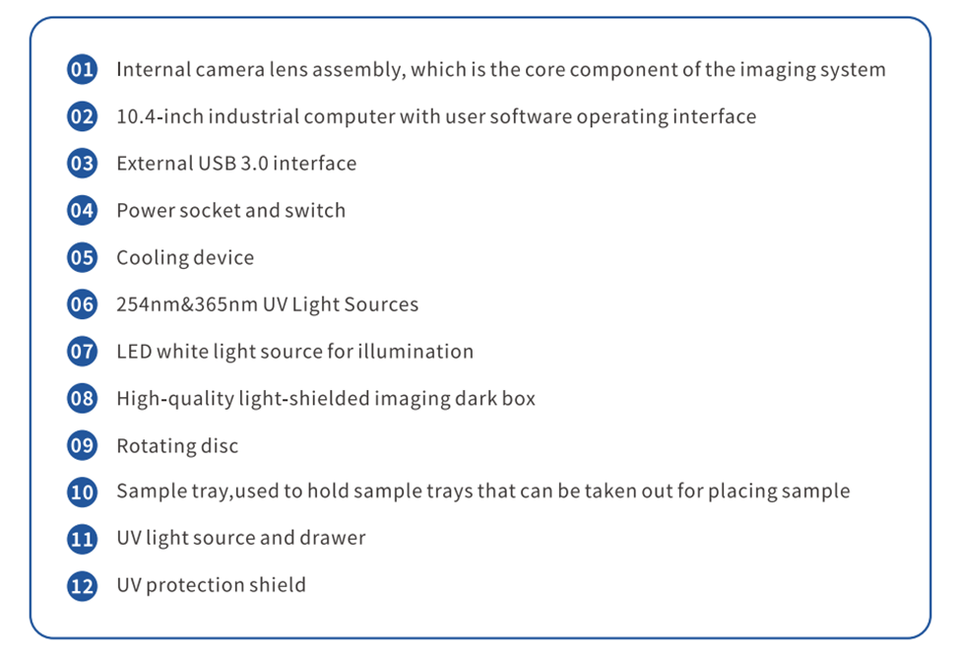

Be scg w5000 plus 2

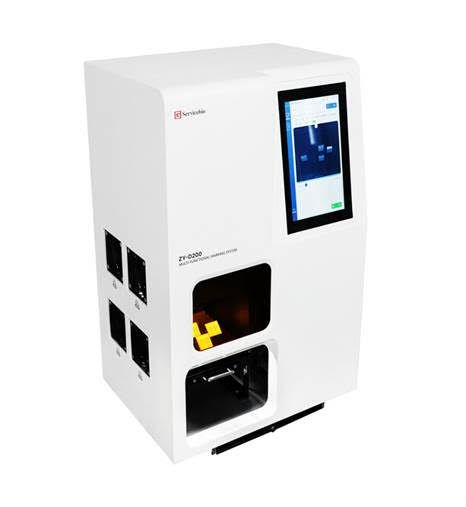

BE-ZY-D200: Multi-Functional Labeling System
BE-ZY-D200: Multi-Functional Labeling System

Multi-Functional Labeling System

Manufactured by: Servicebio
Compared with traditional silkscreen printing, laser-based labeling provides a faster and more precise solution for plastic applications. The system supports both manual character entry and batch data import from Excel, minimizing human input errors while ensuring high throughput. Integrated CCD visual positioning technology further reduces manual intervention and enhances accuracy, resulting in consistently precise and high-quality labeling performance.
Fast, High-Precision Laser Labeling with Permanent Information Storage
Cat. No.：BE-ZY-D200

Product Features:

  • Laser labeling technology—no ribbons, inks, or toners required.
  • Supports bulk data import and customized content entry. Automatic visual recognition of items for precise marking.
  • Equipped with a built-in computer, keyboard, and mouse; ready to use upon setup.
  • 3W ultraviolet laser with air-cooled, low-noise design.
  • Supports customized development to meet specific application needs.

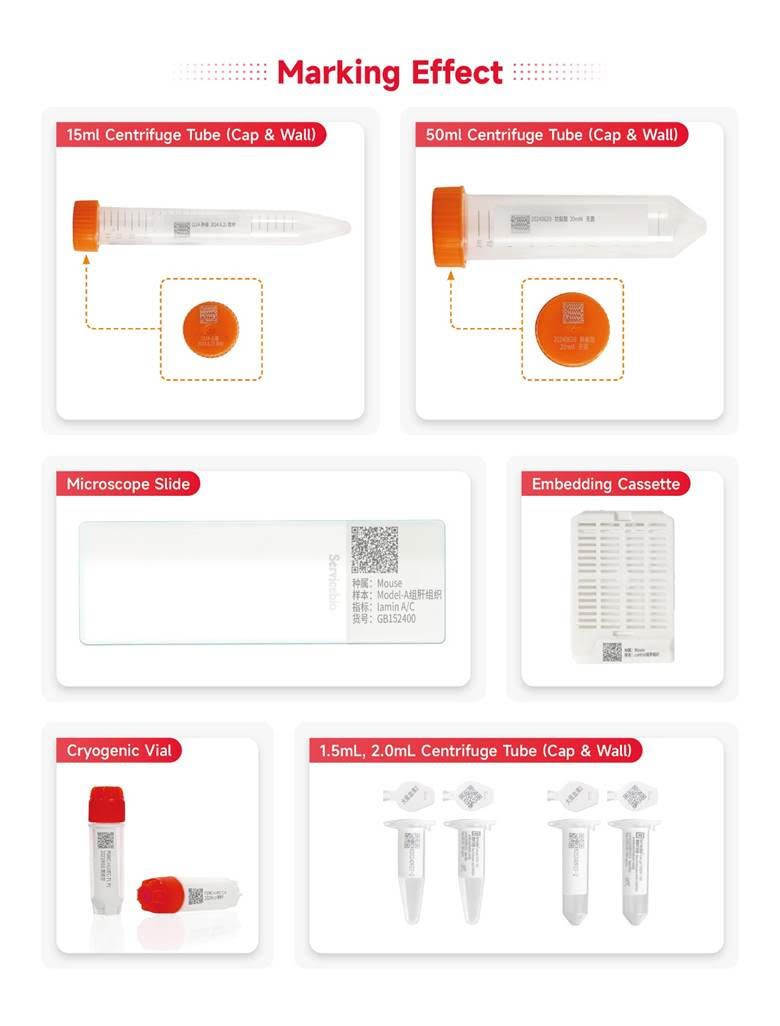

Labeling system 1
Labeling system 2
No. Product Model BE-ZY-D200
1 Module Specifications 1.5mL, 2mL, 15mL & 50mL centrifuge tubes, cryogenic vials, embedding cassette, and microscope slides.
2 Laser Wavelength 355nm Ultraviolet Laser
3 Laser Power and Heat Dissipation 3W UV solid-state laser with air-cooling
4 Laser Average Power ＞3W@40kHz
5 Overall Dimensions L×W×H Max 480mm × 350mm × 705mm
6 Weight Max 39kg


Performance Parameters

Function Parameters:

Operating Function Imported information can be converted into a QR code and permanently marked on the product.
Marking Working Temperature Temperature: 15~35°C, humidity ≤90%

Other Features:

Display Screen 10.1-inch capacitive touchscreen, 1280 × 800 resolution @ 60 Hz, LED backlight.
User-friendly display of operating status Yes; includes dynamic background colors reflecting temperature and animated operating status.
Multiple interfaces for easy switching Interfaces: Minimalist main, program running, CCD visual switching, engineering, etc.
Ethernet port Built-in Gigabit Ethernet port
Performance Upgrades Features: Explosion-proof, anti-glare, dustproof, waterproof; automatic brightness adjustment (light sensor); electromagnetic screen; 4G module; GPS; speaker.
Telligent self-check on startup Yes; the system interface also supports self-check functionality.
Parking information recording Yes
Fault self-diagnosis and reporting Yes
Estimated total time and remaining time Yes
Instrument index Yes; evaluates product maintenance needs based on instrument usage conditions.
Touchscreen calibration function Yes; calibration can be initiated by long-press during self-check.
Module temperature Yes; limited to factory-mode calibration.
System time Yes, instrument date and time can be configured.
Key sound Yes, equipped with on/off functionality.
Screen brightness adjustment Yes, adjustable on multiple levels.
Language selection Yes, system language can be switched (Chinese/English).
System interface Features system configuration, self-diagnostic function, factory reset, and software upgrade engineering interface (restricted to factory mode), etc.
Help system Includes product features, software characteristics, quick guide, fault codes, and contact information.
WeChat service platform Yes, when a fault occurs, users can send fault photos to the company’s WeChat service platform via mobile phone.
Factory mode Yes, restricted to manufacturer access (special password required); allows system operations.

Normal Operating Conditions:

Operating temperature 0℃~40℃
Atmospheric pressure 85.0kPa~106.0kPa
Relative humidity 20%~80%
Power supply environment 220V, 50Hz±1Hz, >15A, <600W
Area Suitable for environments without excessive heat or humidity.

Transportation and storage conditions:

Ambient temperature 15℃~30℃; <90%
Relative humidity 20℃~30℃; <80%
Transportation and storage instructions are printed on the outer packaging. Labels such as “Protection from rain,” “Stacking layers,” “Handle with care,” and “Fragile” are affixed to ensure proper handling.

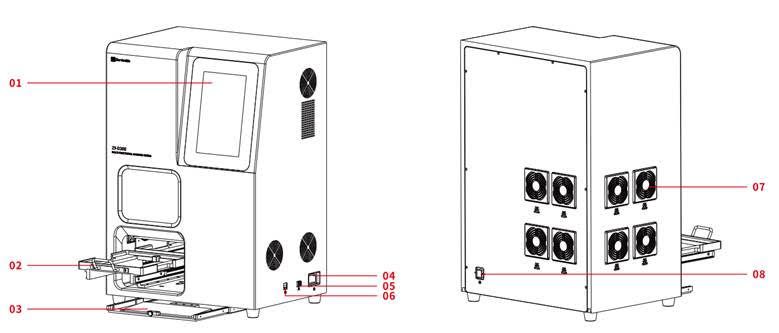

Instrument Structure
Labeling system 3
1 Touch Screen Used to select pre-written marking programs. For users who are proficient in using the machine,they can also write their own marking content.
2 Carrier Adapter and Push-Pull Device Before marking, the carrier and the item to be marked must be placed in the carrier adapter according to the specified orientation.Push the adapter into the machine and let it magnetically attach before operating the system for marking.
Note The positioning accuracy of the carrier adapter is high and has undergone precise calibration before delivery.Do not apply any force other than pushing and pulling on the carrier adapter and its push-pull device.
3 Keyboard and Mouse Users who are not accustomed to using the touch screen can use a keyboard and mouse as alternatives.
4 Rocker Switch Controls the power on/off of the entire machine.
5 USB is Used for connecting external devices such as mouse and keyboard, and supports importing external marking data.
6 Rj45 Interface Network port supports internet connection.
7 Fan Cover For continuous use of the machine, the fan cover needs to be cleaned once a week. The specific cleaning method is to remove the cover with hands and shake off the dust from the primary filter cotton. Warning Do not disassemble the fan cover when the machine is powered on.
8 Power Socket National standard three-core power cord socket.

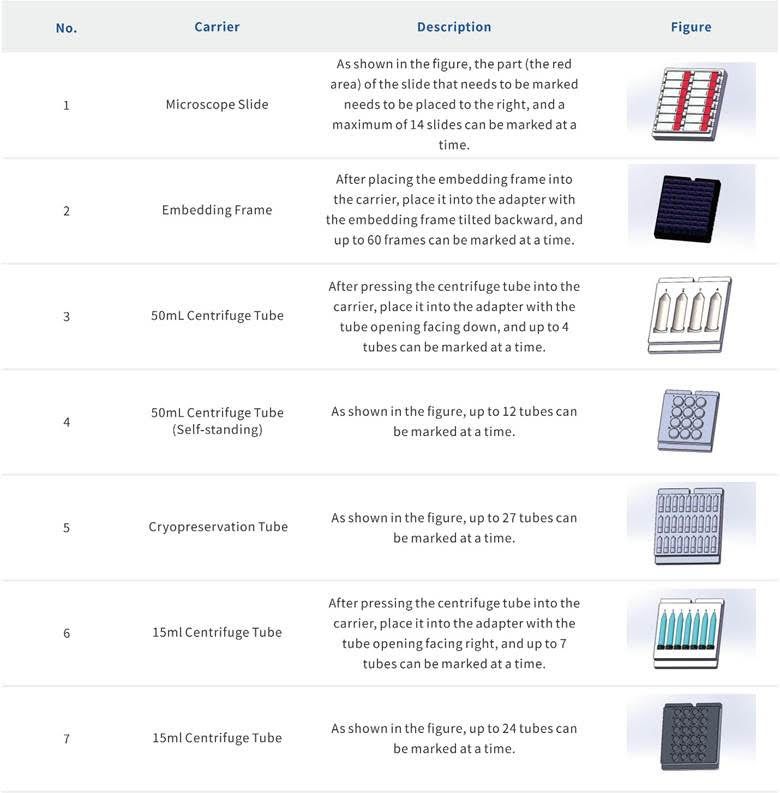

Carrier Introduction
The instrument currently has 7 types of carriers, including 50ml centrifuge tubes (including the cap and the body),15mlcentrifuge tubes (including the cap and the body), embedding frames, slides, cryovials
Labeling system 4


Labeling system 5

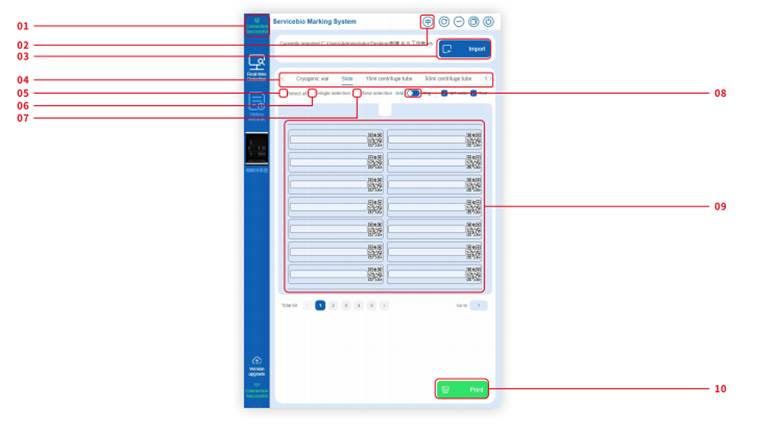

4.1.1 The red box 1 is a connection status indicator. The printing can only be done when it displays “Connected Successfully”.
4.1.2 The red box 2 is a button for switching between Chinese and English.
4.1.3 The red box 3 is an import button. After clicking, you can follow the guidance to select the Excel file that needs to be imported. The import function starts from the second row of the first column, with the first row of the first column defaulting as the header.
4.1.4 The red box 4 is the product selection area, which can be selected manually or automatically. After the software is properly turned on and displays “Connected Successfully”, pushing the adapter with the products into the marking machine will automatically select the corresponding printing interface based on the recognition results and jump to the corresponding interface.
4.1.5 The red box 5 is the “Select All” button. When no printing information is selected, selecting this switch will select all the information on the current page.
4.1.6 The red box 6 allows for single selection, allowing you to choose any one or multiple pieces of information individually.
4.1.7 The red box 7 is for region selection. After selecting this switch, choose one piece of information, then select another piece of information afterwards, and all the information between them will be selected.
4.1.8 The red box 8 is the toggle for the illustrated marking function.
4.1.9 The red box 9 is the printing information area, where you can manually input information or use the import function to input information.
4.1.10 The red box 10 is the “Print” button. After pushing in the adapter with products and selecting the information that needs to be printed, click this button to start printing.
Product BioElite Cat#
Multi-Functional Labeling System BE-ZY-D200


Optional Items

Part Number Description Packaging Technical Characteristics
BE-EP-150X-J Centrifuge Tube 1.5 mL 10 pcs/bag, 250 bags/ctn Sterile, DNase & RNase Free
BE-EP-200-J Centrifuge Tube 2.0 mL 500 pcs/bag, 10 bags/ctn Sterile, DNase & RNase Free
BE-EP-200X-J Centrifuge Tube 2.0 mL 10 pcs/bag, 250 bags/ctn Sterile, DNase & RNase Free
BE-EP-1500-J Centrifuge Tube 15 mL 50 pcs/rack, 10 racks/ctn Sterile, DNase & RNase Free, Foam Rack, Conical Bottom
BE-EP-1500-J Centrifuge Tube 15 mL 50 pcs/rack, 10 racks/ctn Sterile, DNase & RNase Free, Foam Rack, Conical Bottom
BE-CV-2-KB-ET Cryogenic Vials 2.0 mL 50 pcs/rack, 20 racks/ctn Silicon Ring, External Thread, Leak-Proof, Individually Wrapped
BE-CV-2-ET-50 Cryogenic Vials 2.0 mL 50 pcs/rack, 40 racks/ctn Silicon Ring, External Thread, Basic
BE-EF-1 Embedding Cassette 250 pcs/bag, 2000 pcs/ctn Single Grid
BE-EF-2 Embedding Cassette 250 pcs/bag, 2000 pcs/ctn 2-Grid
BE-EF-3 Embedding Cassette 250 pcs/bag, 2000 pcs/ctn 4-Grid
BE-G6012-1 Adhesion Microscope Slides 50pcs/box Paraffin, White Painted Edge. Marking area in white color.

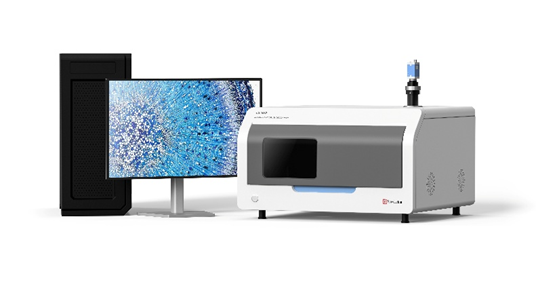

Servicebio: Digital Pathology Slide Scanner
Servicebio: Digital Pathology Slide Scanner

Digital Pathology Slide Scanner


Manufactured by: Servicebio
Cat.No.: BE-LG-S80
