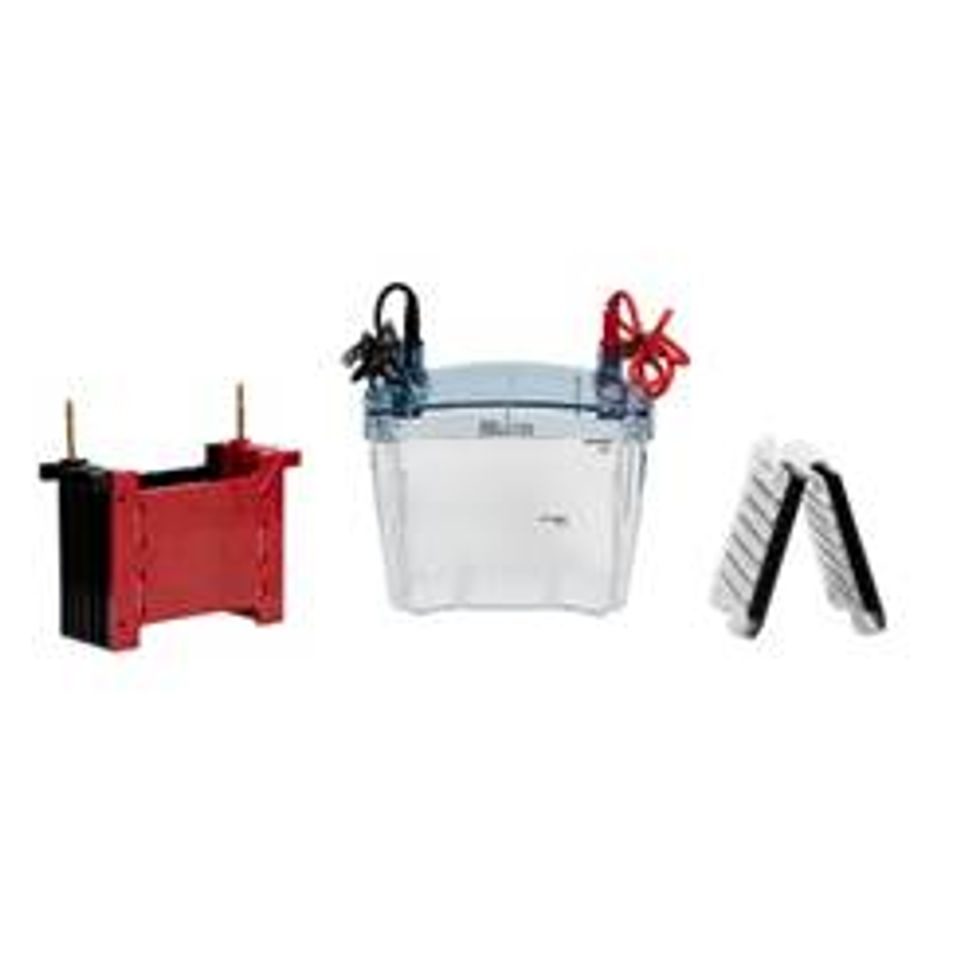

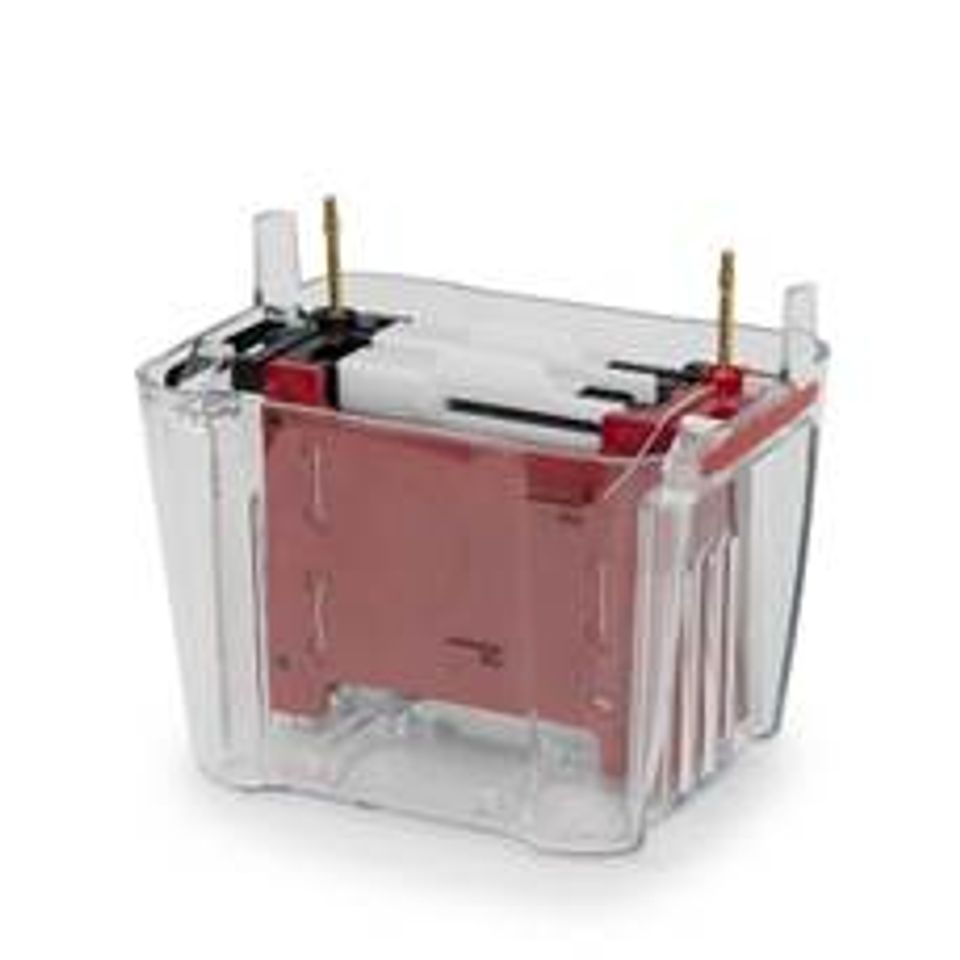

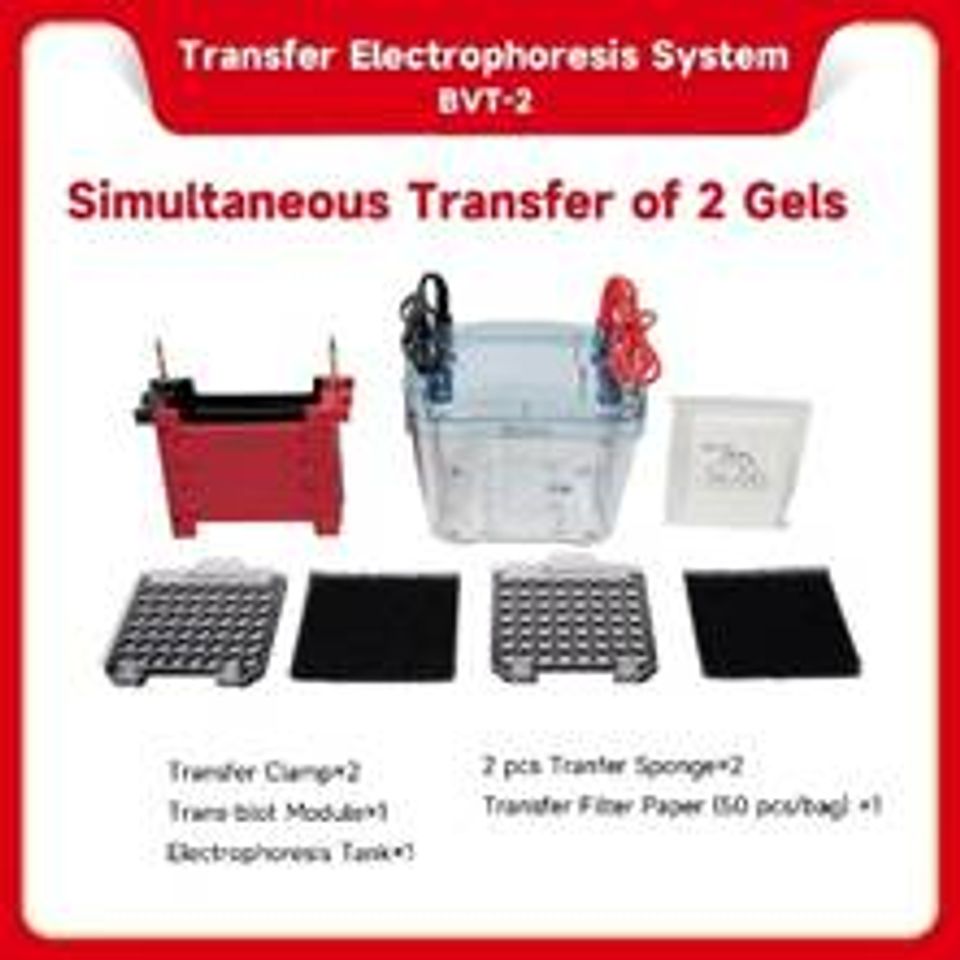

BE-BVT-2 Transfer System
Cat. No.: BE-BVT-2
The BE-BVT-2 Transfer System supports the simultaneous transfer of up to two membranes. The transfer clamp and cores are color-coded for easy identification, and the clamp is equipped with a convenient handle for safe and efficient operation. The tank surface includes clearly marked liquid level lines to ensure accurate buffer preparation and consistent experimental results.
Brand: Servicebio
Brand: Servicebio
Product Information
This product is designed for use with the BE-BVE-4 Vertical Electrophoresis System. It employs an electric field to transfer proteins, nucleic acids, and other biomolecules from the gel—after electrophoresis—onto blotting membranes. This process enables subsequent biochemical analyses and research on charged particles.
Product Features
This product is designed for use with the BE-BVE-4 Vertical Electrophoresis System. It employs an electric field to transfer proteins, nucleic acids, and other biomolecules from the gel—after electrophoresis—onto blotting membranes. This process enables subsequent biochemical analyses and research on charged particles.
Product Features
- Dual-plate design: Compatible with the BE-BVE-4 Vertical Electrophoresis System.
- High-quality construction: The electrophoresis tank is made from high-transparency polycarbonate using a single injection molding process, offering excellent corrosion resistance, clarity, and structural stability.

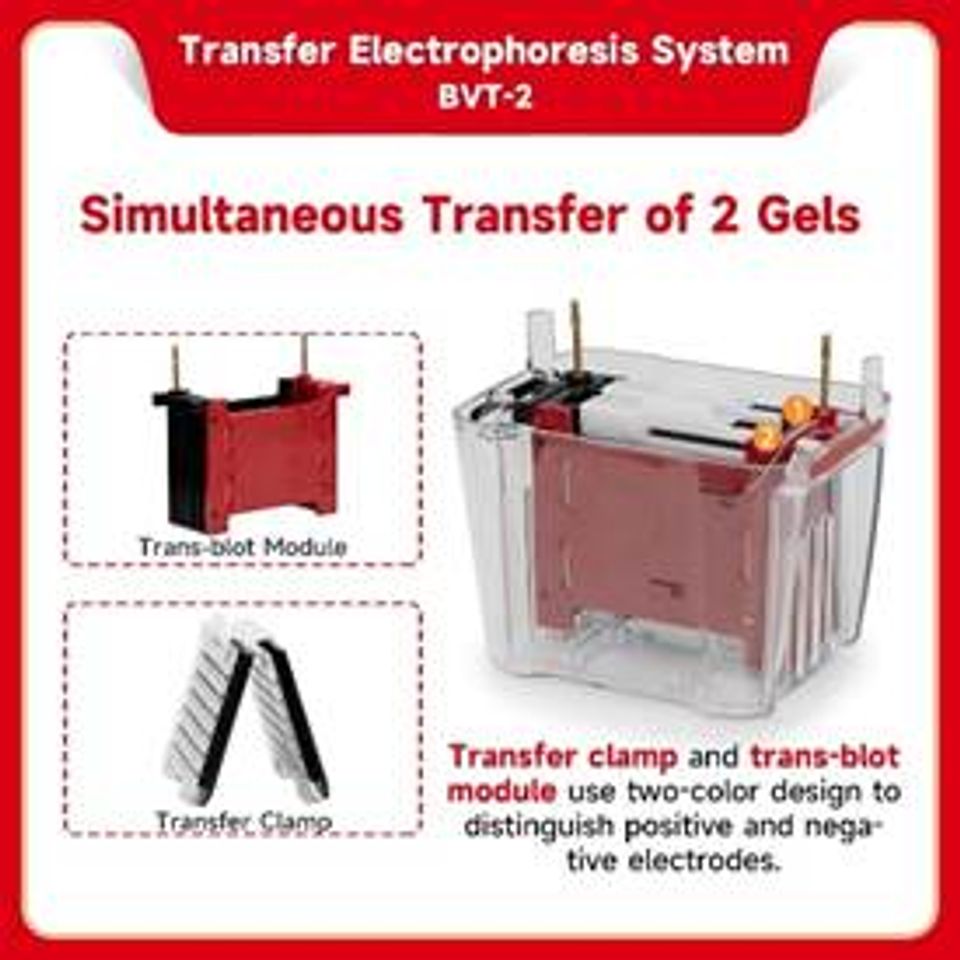

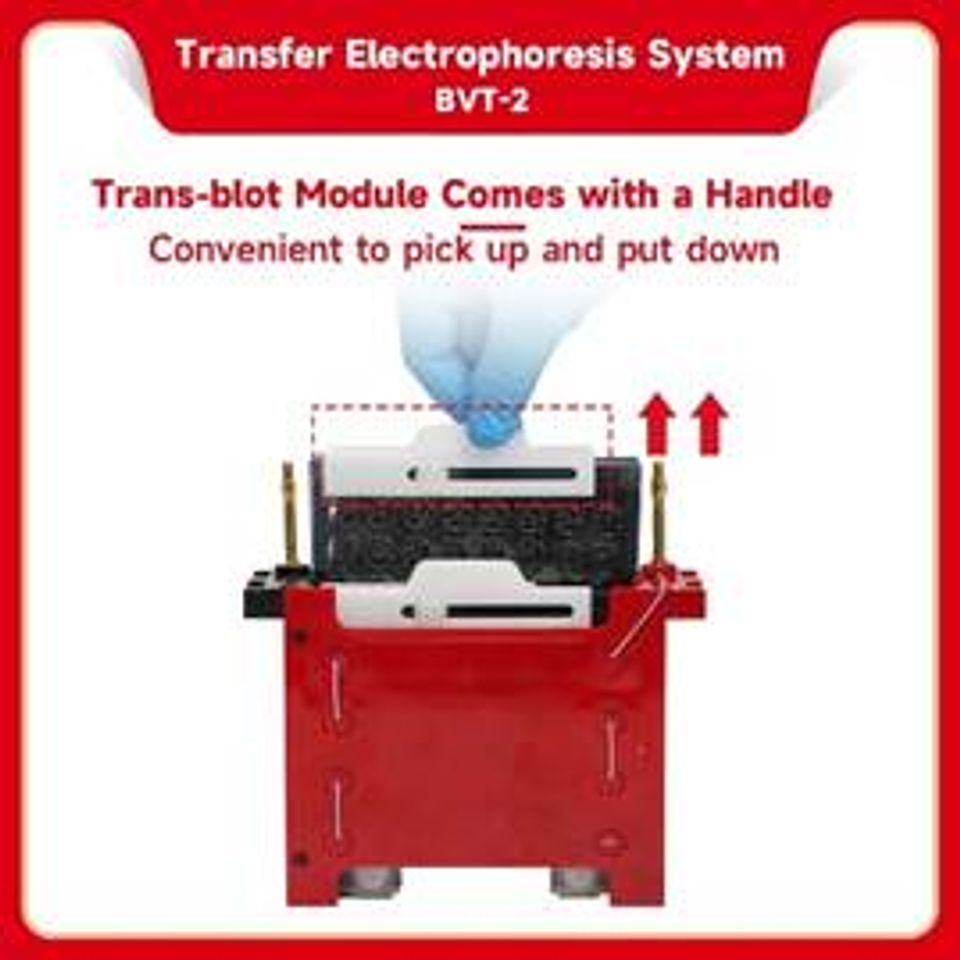

- User-friendly transfer clip: Clearly marked positive and negative poles with convenient handles for easy and safe operation.
- Efficient transfer performance: Achieves high blotting efficiency with a typical transfer time of approximately 20–40 minutes.
- Enhanced temperature control: Durable structural materials support simultaneous ice bath cooling to prevent overheating and ensure consistent, reliable results.
- Dual-membrane capacity: Allows for the transfer of up to two membranes simultaneously.
Product Parameters
| Catalog # | BE-BVT-2 |
|---|---|
| Number of Gels | (1-2) |
| Blotting Membrane Size | 75×100mm |
| External Dimensions | 140×180×185mm |
| Maximum Buffer Capacity | 1.3 L |

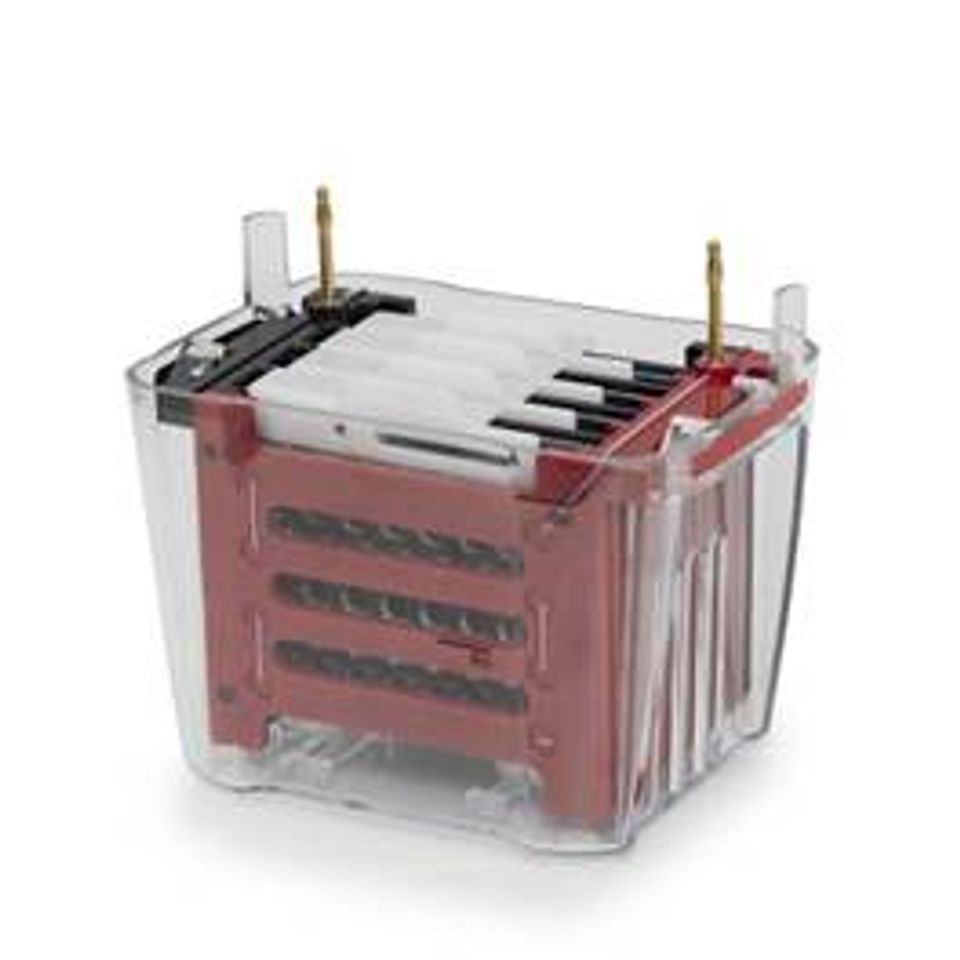

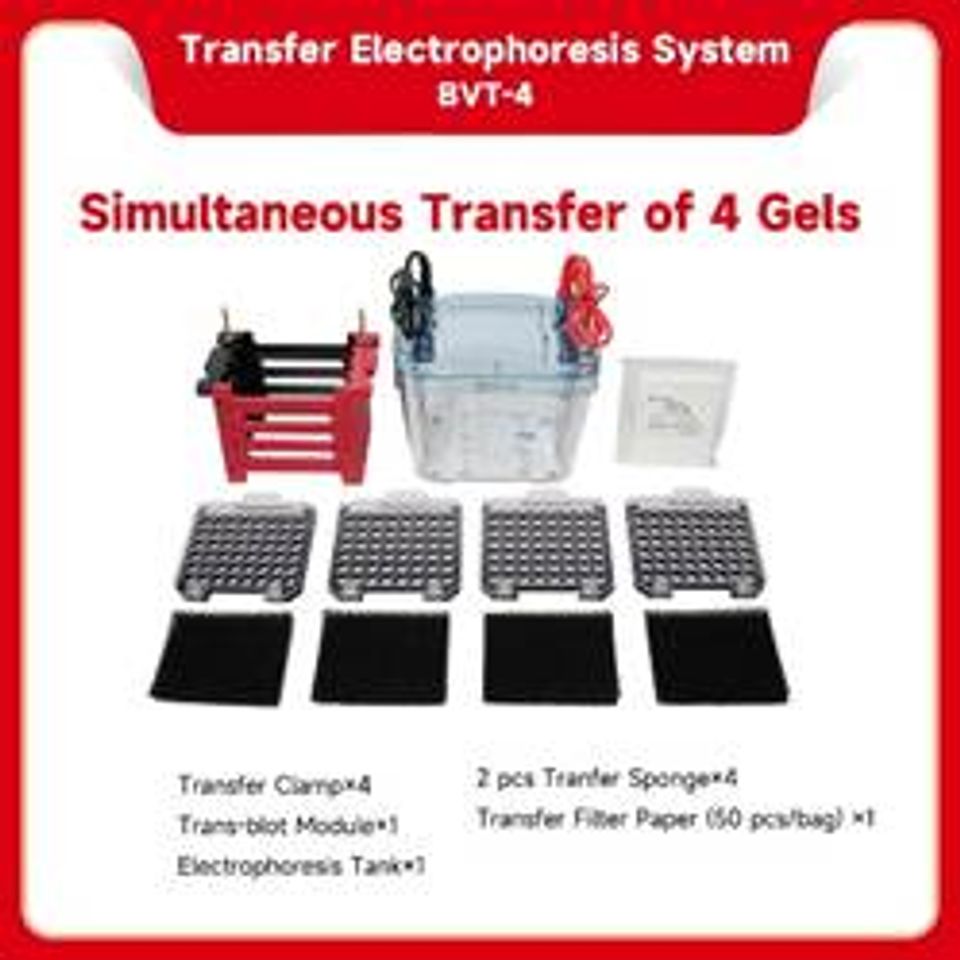

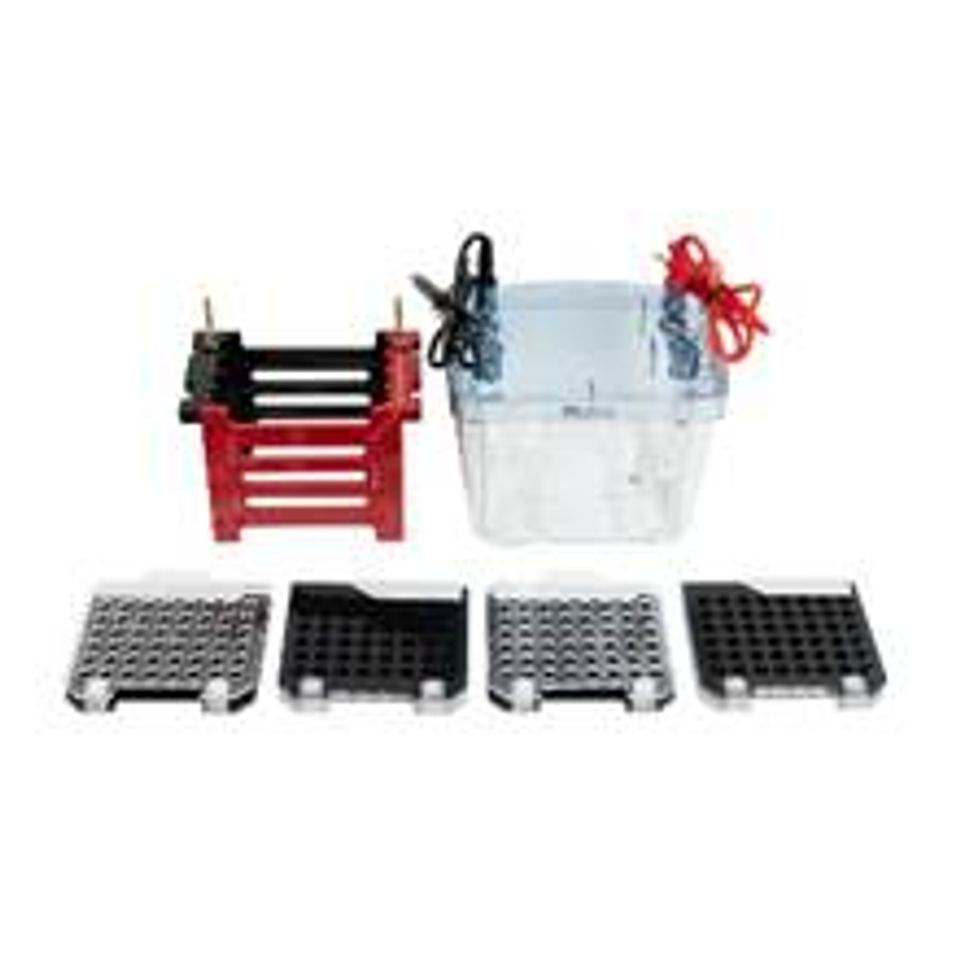

BE-BVT-4 Transfer System
Cat. No.: BE-BVT-4

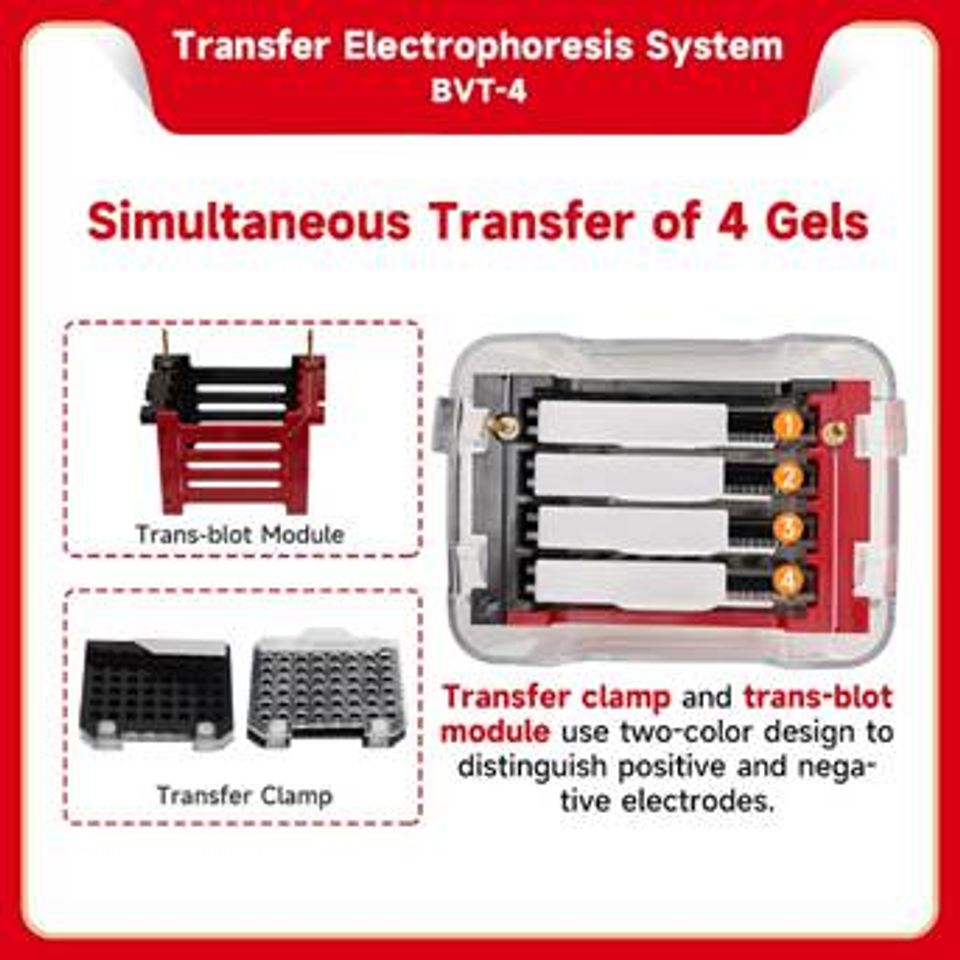

The BE-BVT-4 Transfer System supports the simultaneous transfer of up to four membranes. The transfer clamp and cores are color-coded for easy identification, and the clamp is equipped with a convenient handle for safe and efficient operation. Clearly marked liquid level lines on the tank surface ensure accurate buffer preparation and consistent experimental results.
Brand: Servicebio
Brand: Servicebio
Product Information
This system is designed for use with the BE-BVE-4 Vertical Electrophoresis System. It employs an electric field to transfer proteins, nucleic acids, and other biomolecules from post- electrophoresis gels onto blotting membranes, facilitating subsequent biochemical analyses and research on charged particles.
Product Features
This system is designed for use with the BE-BVE-4 Vertical Electrophoresis System. It employs an electric field to transfer proteins, nucleic acids, and other biomolecules from post- electrophoresis gels onto blotting membranes, facilitating subsequent biochemical analyses and research on charged particles.
Product Features
- Dual-plate design: Fully compatible with the BE-BVE-4 Vertical Electrophoresis System.
- High-quality construction: The electrophoresis tank is molded from high-transparency polycarbonate using a single injection process, ensuring excellent corrosion resistance, optical clarity, and structural stability.
- User-friendly transfer clip: Clearly marked positive and negative poles and ergonomic handles for safe and convenient operation.
- Efficient transfer performance: Achieves high blotting efficiency with a typical transfer time of approximately 20–40 minutes.
- Enhanced temperature control: Durable structural materials support simultaneous ice bath cooling to prevent overheating and ensure consistent, reliable results.
- Dual-membrane capacity: Allows for the transfer of up to four membranes simultaneously.
Product Parameters
| Catalog # | BE-BVT-4 |
|---|---|
| Number of Gels | (1-4) |
| Blotting Membrane Size | 75×100mm |
| External Dimensions | 140×180×185mm |
| Maximum Buffer Capacity | 1.3 L |
BE-SVT-2 Transfer System
Cat. No.：BE-SVT-2
Product Introduction

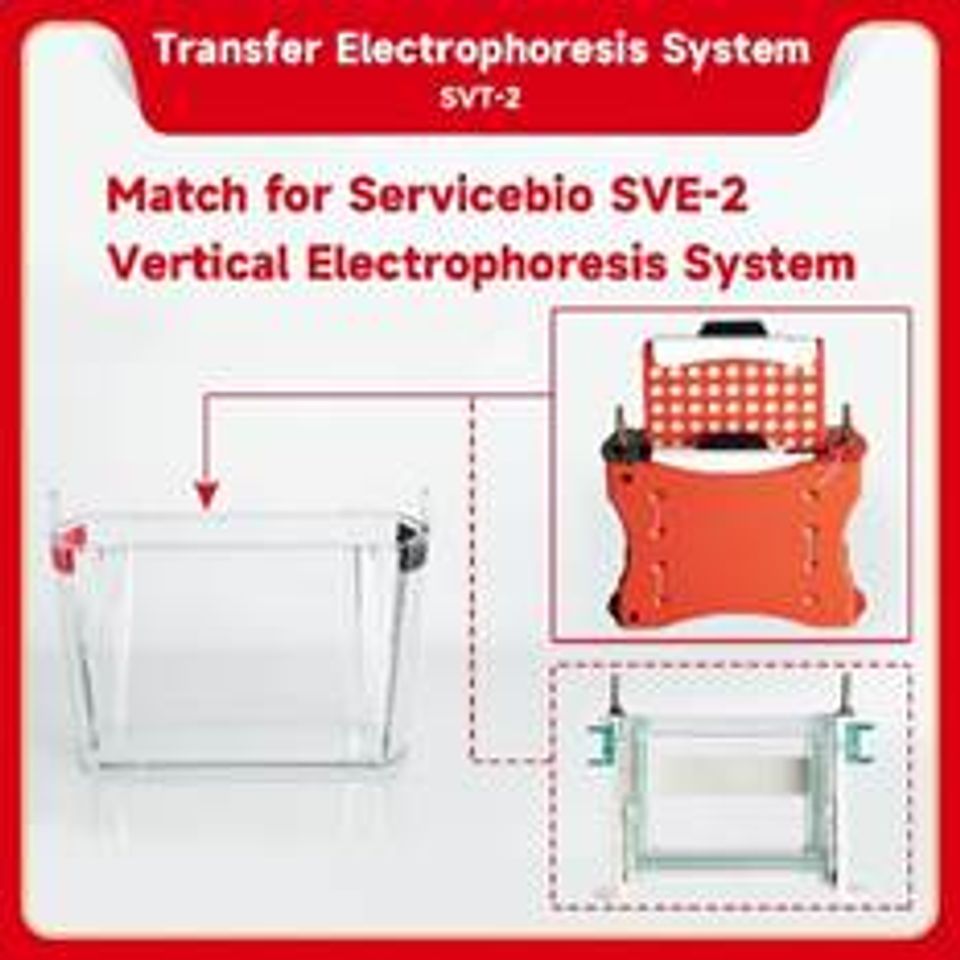

This product is designed for use with the BE-SVE-2 Vertical Electrophoresis System. It employs an electric field to transfer proteins, nucleic acids, and other biomolecules from the post-electrophoresis gel onto blotting membranes, enabling subsequent analysis and characterization of charged particles through biochemical methods.
This product is designed for use with the BE-SVE-2 Vertical Electrophoresis System. It employs an electric field to transfer proteins, nucleic acids, and other biomolecules from the post-electrophoresis gel onto blotting membranes, enabling subsequent analysis and characterization of charged particles through biochemical methods.
Brand: Servicebio
Product Features

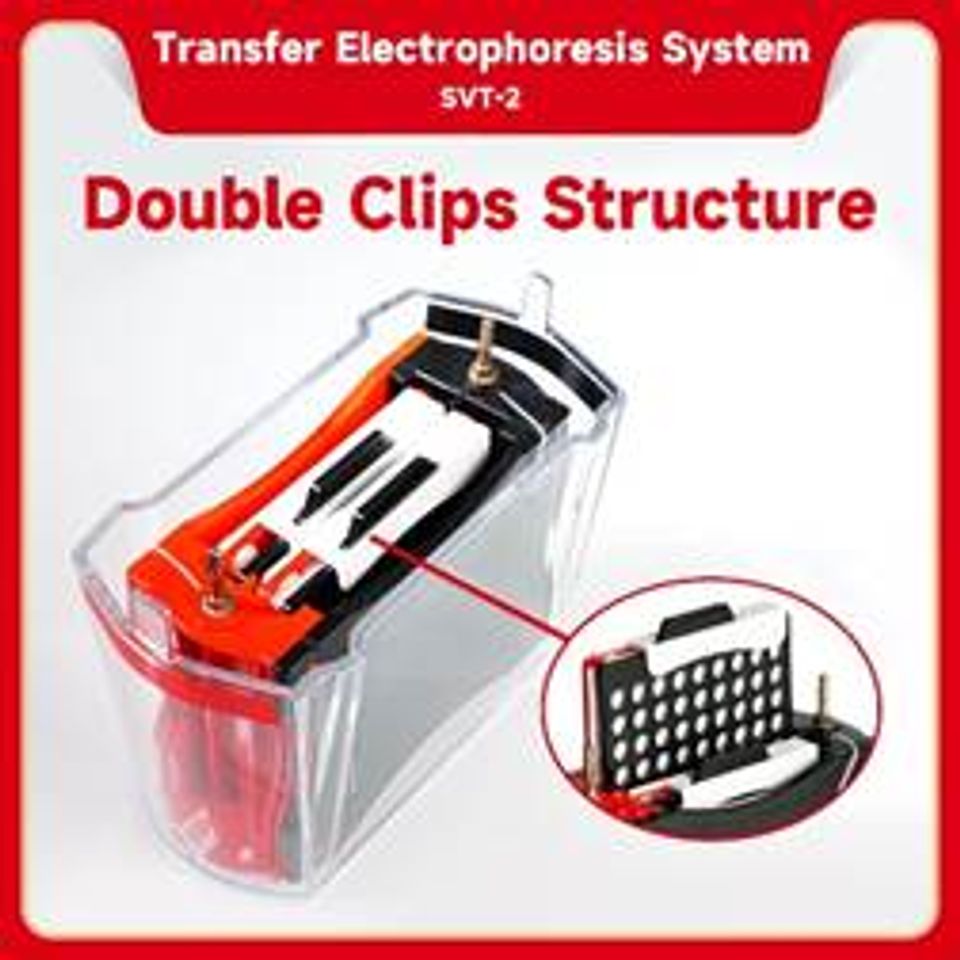

- Dual-plate structure, compatible with the BE-SVE-2 Electrophoresis System.

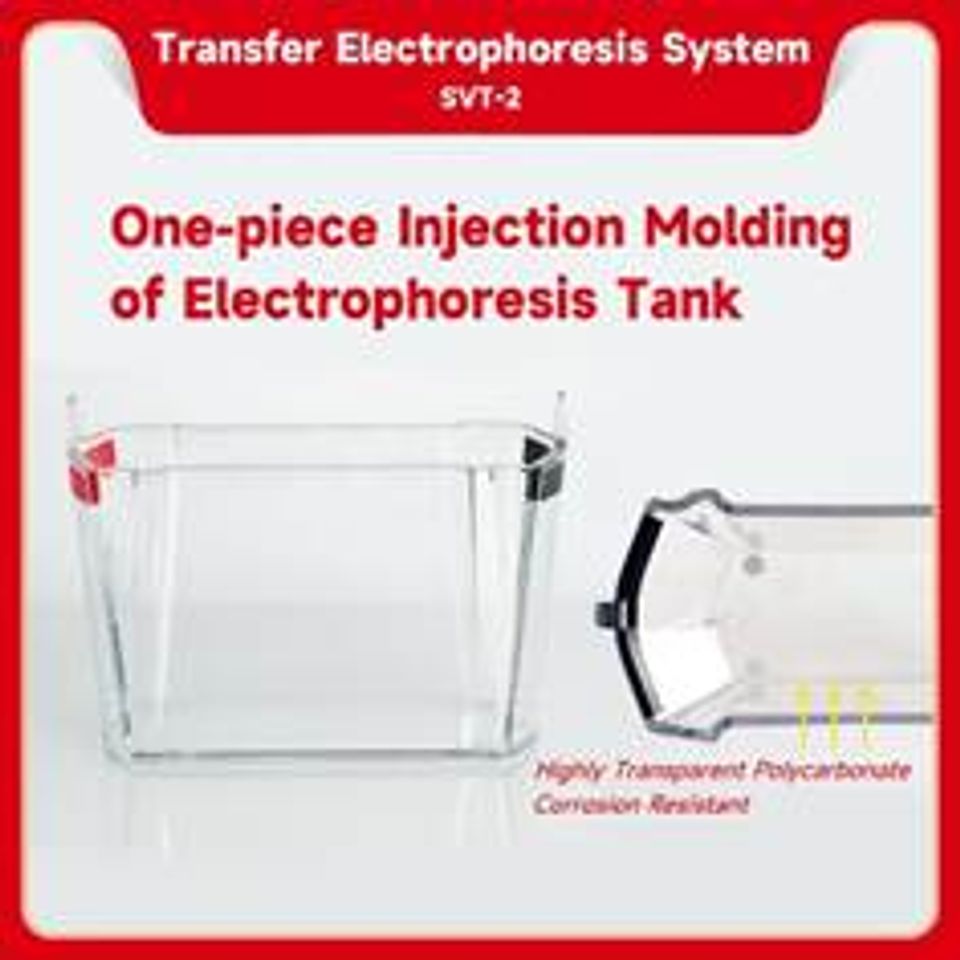

- The electrophoresis tank is made of high-transparency polycarbonate through integrated injection molding, offering excellent corrosion resistance, optical clarity, and stable performance.

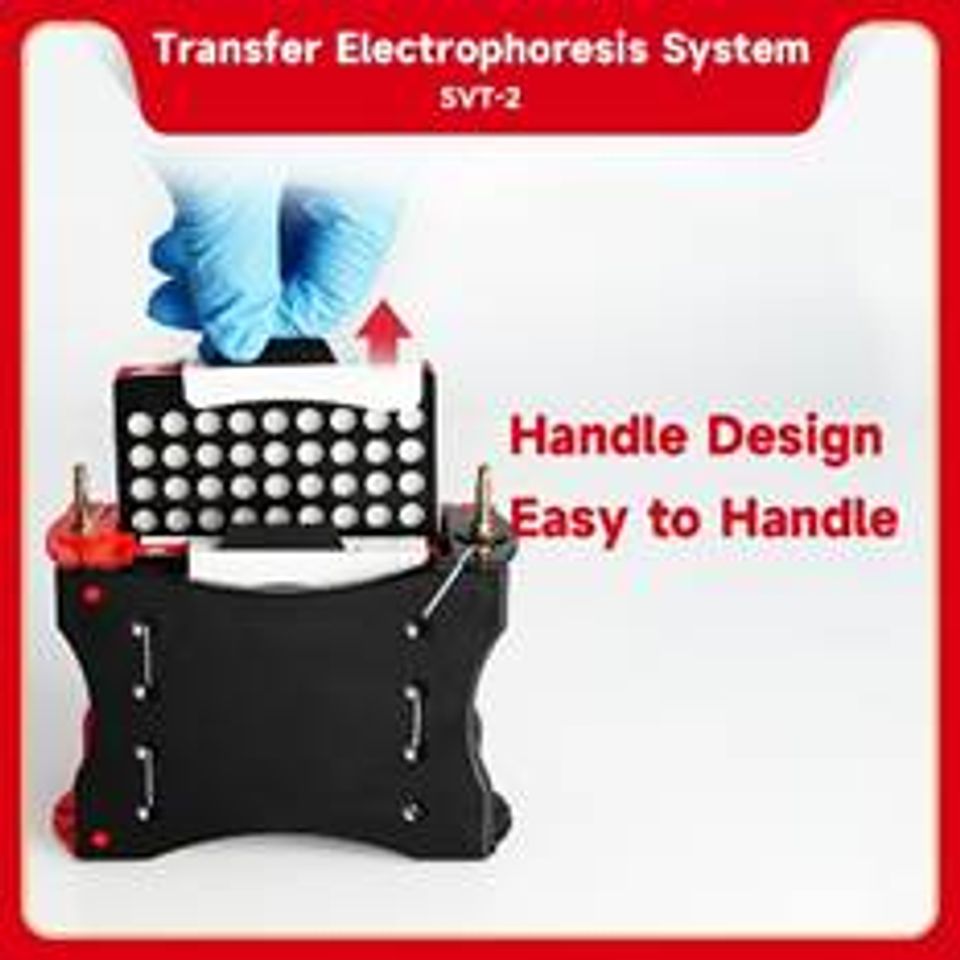

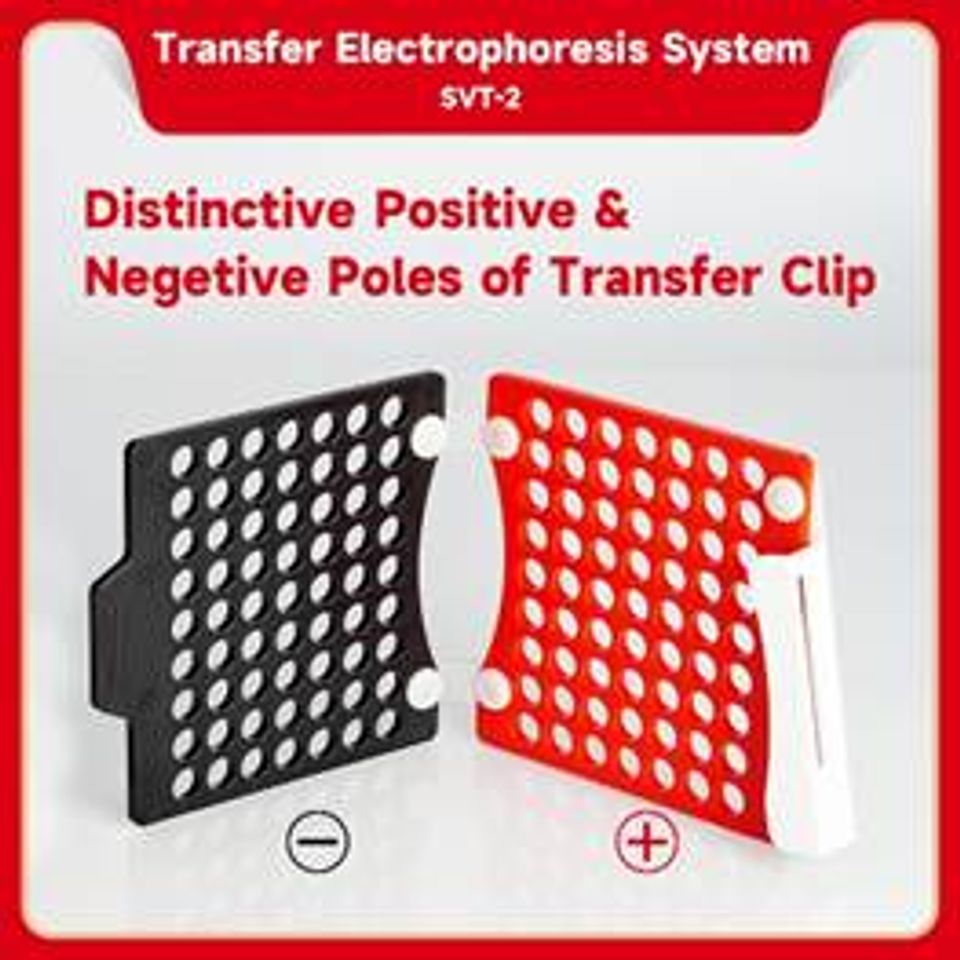

- The transfer clips feature clearly marked positive and negative electrodes and are equipped with handles for convenient and safe operation.
- High transfer efficiency with a typical transfer time of approximately 20–40 minutes.
- Robust structural design allows for simultaneous ice bath cooling to prevent overheating, ensuring consistent and reliable experimental results.
Product Specifications
| Catalog # | BE-SVT-2 |
|---|---|

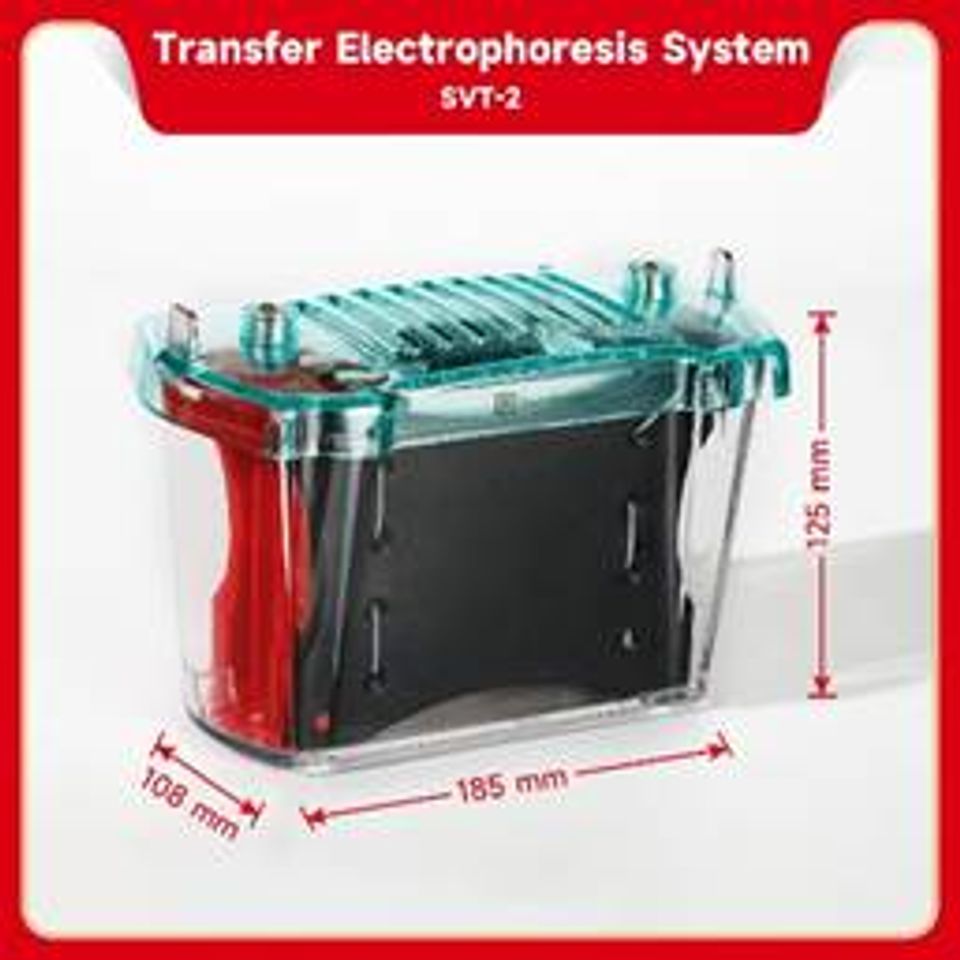

| Dimensions (L*W*H) mm | 185x108x125 |
| Gel size/transfer size (mm) | Transfer size 70x90 |
| Maximum volume of buffer (ml) | 500 |
Operation Process
1. Preparation
Prepare eight sheets of 7×9 cm thin transfer membrane filter paper, or two sheets of thick filter paper of the same size, along with one 7×9 cm PVDF membrane.
For optimal results, use a PVDF membrane with a pore size of 0.45 μm for proteins greater than 20 kDa, and 0.2 μm for proteins smaller than 20 kDa.
2. Activation
Before use, activate the PVDF membrane by immersing it in methanol for approximately 2 minutes.
3. Assembly

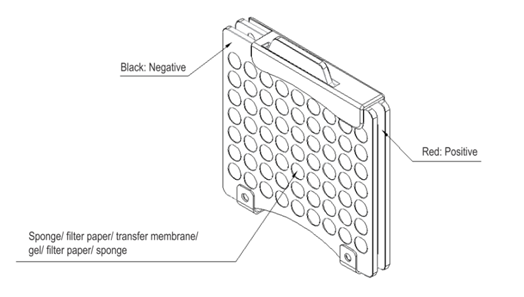

Assemble the transfer stack in the following order:
Positive electrode (+) → sponge → filter paper → transfer membrane → gel → filter paper → sponge → negative electrode (–).
Ensure that all layers are properly aligned and free of air bubbles. The red side represents the positive (+) electrode, and the black side represents the negative (–) electrode.
Insert the assembled transfer clip into the transfer core, matching red to red and black to black. Each transfer core can accommodate two transfer clips simultaneously.
1. Preparation
Prepare eight sheets of 7×9 cm thin transfer membrane filter paper, or two sheets of thick filter paper of the same size, along with one 7×9 cm PVDF membrane.
For optimal results, use a PVDF membrane with a pore size of 0.45 μm for proteins greater than 20 kDa, and 0.2 μm for proteins smaller than 20 kDa.
2. Activation
Before use, activate the PVDF membrane by immersing it in methanol for approximately 2 minutes.
3. Assembly
Assemble the transfer stack in the following order:
Positive electrode (+) → sponge → filter paper → transfer membrane → gel → filter paper → sponge → negative electrode (–).
Ensure that all layers are properly aligned and free of air bubbles. The red side represents the positive (+) electrode, and the black side represents the negative (–) electrode.
Insert the assembled transfer clip into the transfer core, matching red to red and black to black. Each transfer core can accommodate two transfer clips simultaneously.
4. Power-On Transfer
Connect the electrophoresis power supply, set the desired transfer parameters, and initiate the membrane transfer process.
Connect the electrophoresis power supply, set the desired transfer parameters, and initiate the membrane transfer process.

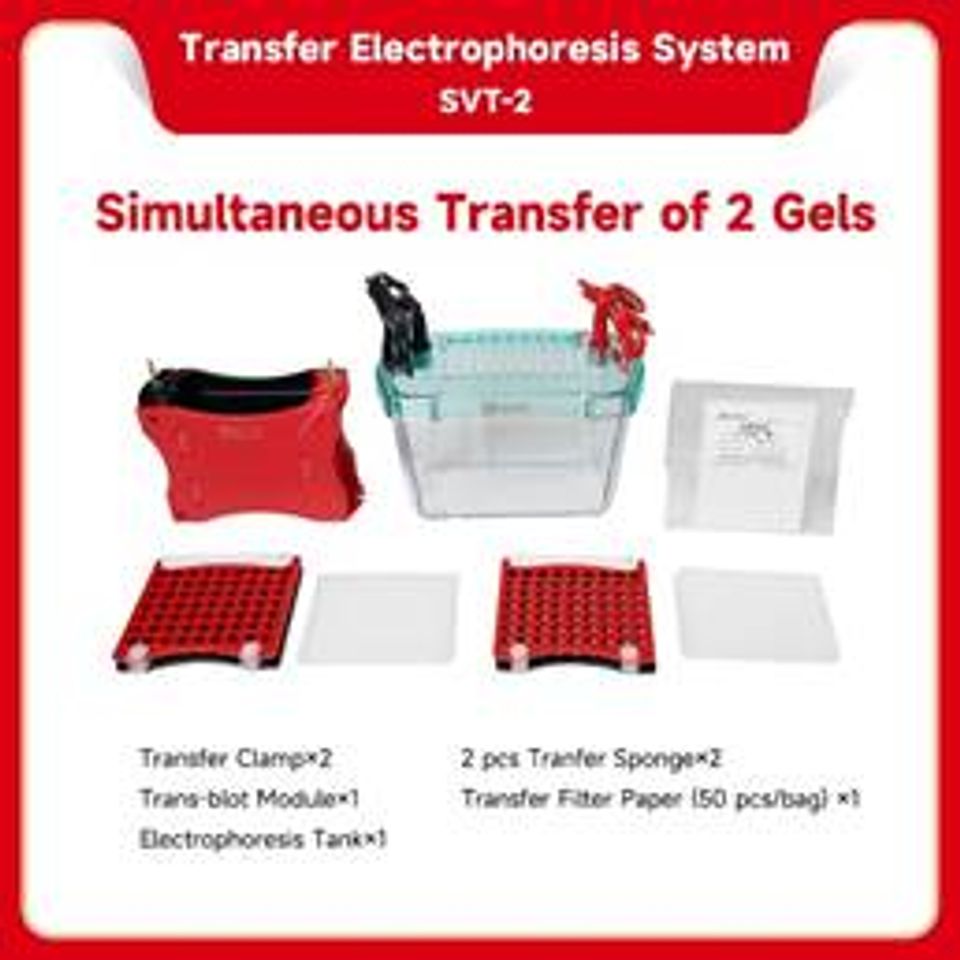

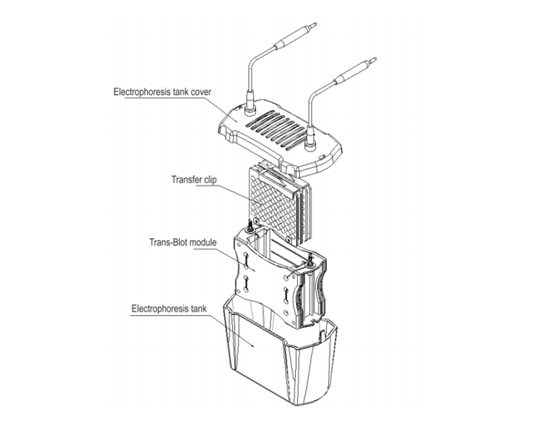

Product Configuration List
| Product Number | Name | Quantity |
|---|---|---|
| 1 | Transfer clip | 2 sets |
| 2 | Transfer core | 1 set |
| 3 | Electrophoresis box | 1 set |
| 4 | Transfer sponge | 1 box |
| 5 | Transfer filter paper | 1 box |
Precautions
- The main components of this product are fragile. Handle with care during packaging, transportation, and operation to prevent impact or dropping, which may cause damage or affect normal performance.
- Inspect metal components such as the platinum wire and electrode column regularly for signs of oxidation, breakage, or looseness during use, cleaning, and maintenance. Replace or service these parts promptly if any issues are found. The platinum wire is particularly delicate—handle it with caution.
- After each use, rinse the unit thoroughly with deionized water and allow it to air-dry in a clean, dust-free environment before storage.

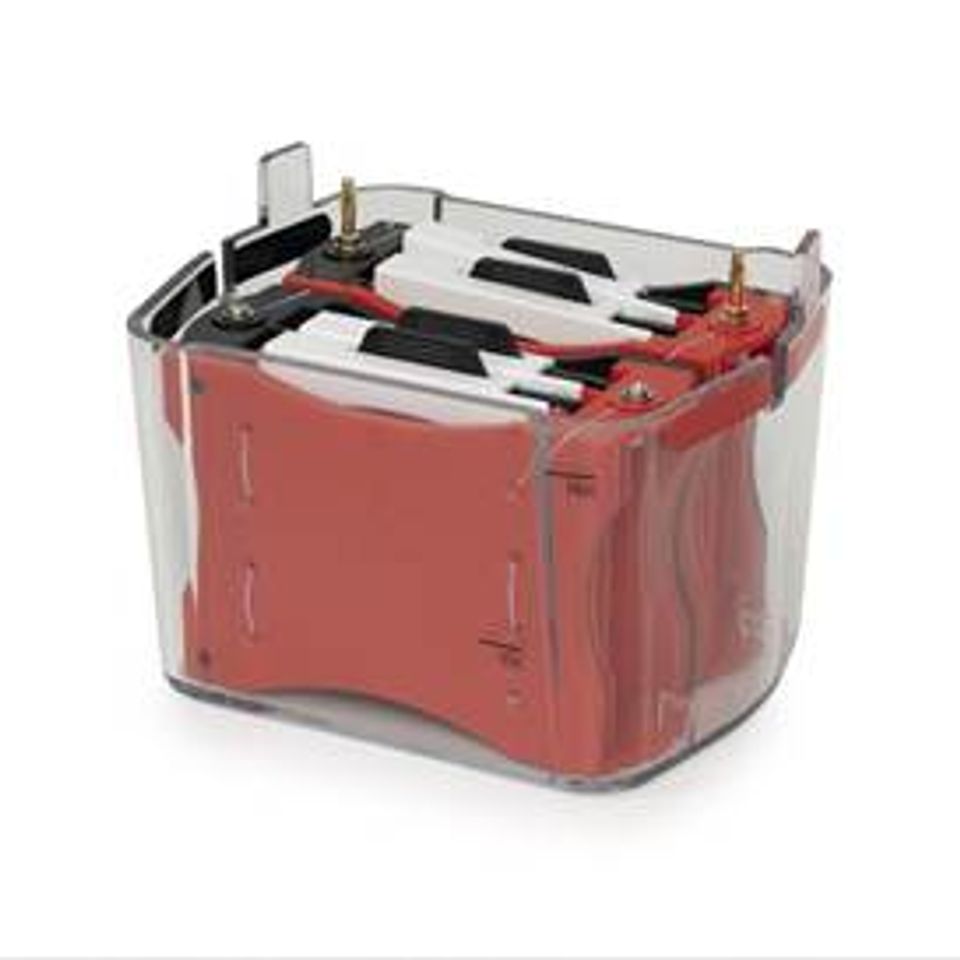

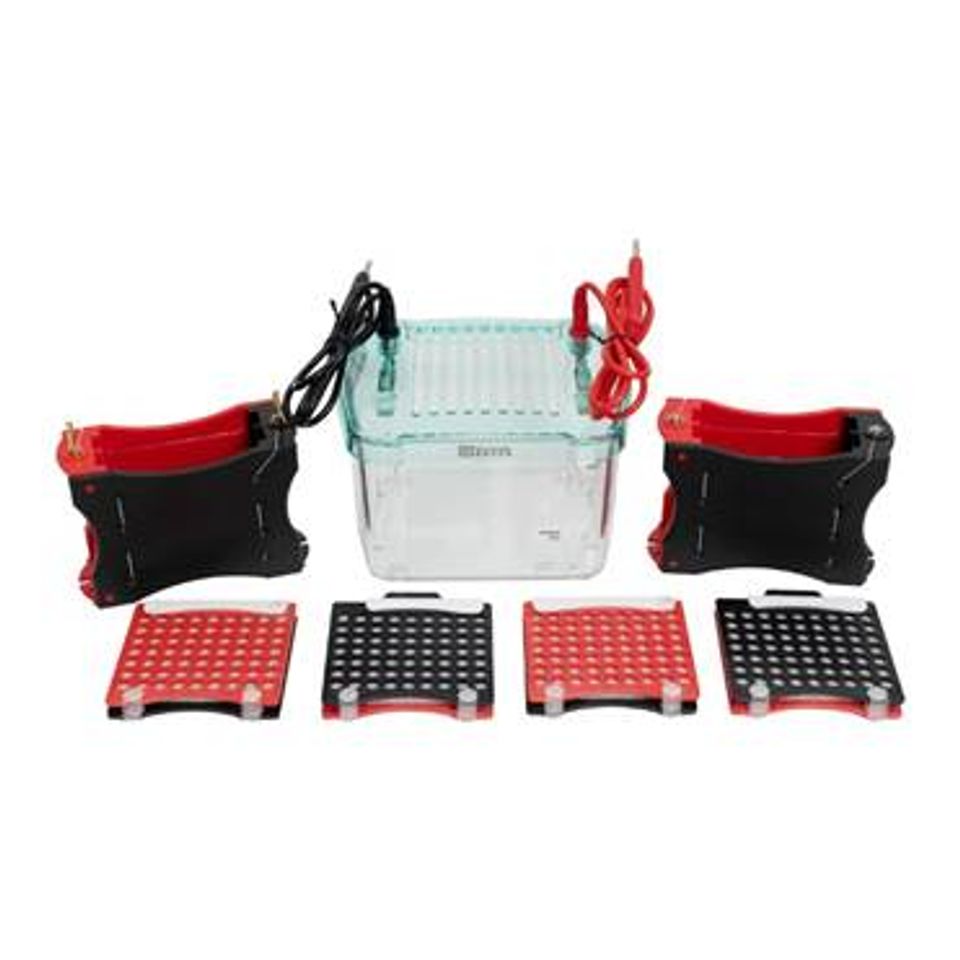

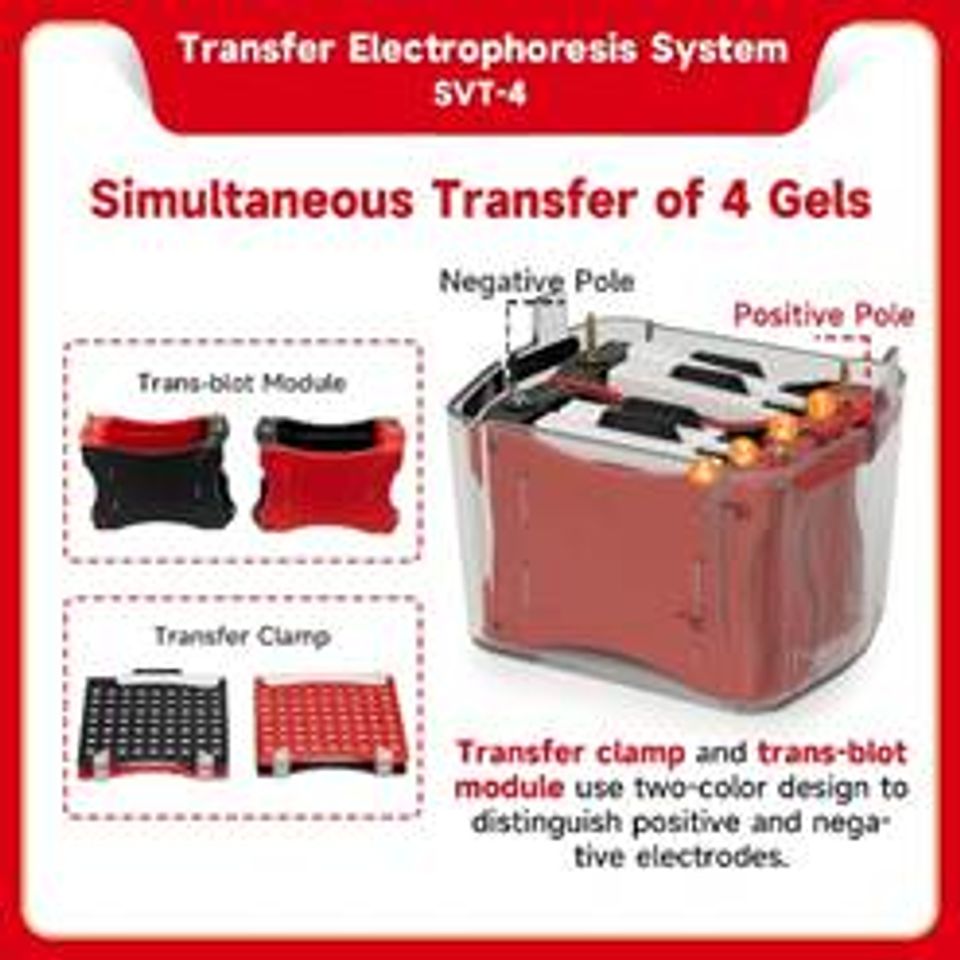

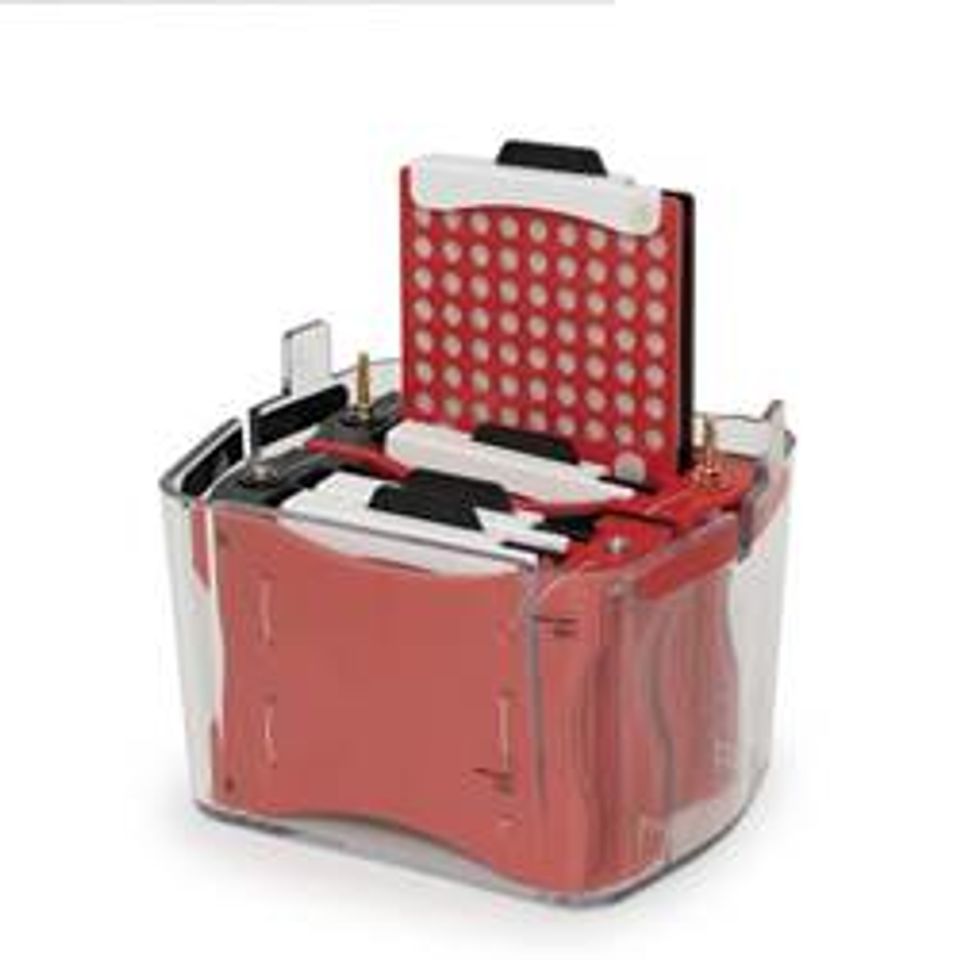

BE-SVT-4 Transfer System
Cat. No.：BE-SVT-4
Brand: Servicebio
Product Information
This product is designed for use with the BE-SVE-4 and BE-SVE-2H Vertical Electrophoresis Systems. It employs an electric field to efficiently transfer proteins, nucleic acids, and other biomolecules from the electrophoresed gel onto blotting membranes, facilitating subsequent analysis and research of charged particles using biochemical methods.
Product Features
This product is designed for use with the BE-SVE-4 and BE-SVE-2H Vertical Electrophoresis Systems. It employs an electric field to efficiently transfer proteins, nucleic acids, and other biomolecules from the electrophoresed gel onto blotting membranes, facilitating subsequent analysis and research of charged particles using biochemical methods.
Product Features
- Dual-plate design – Compatible with both BE-SVE-4 and BE-SVE-2H Vertical Electrophoresis Systems.
- High-quality molding – The electrophoresis tank is made from high-transparency polycarbonate through a one-step injection molding process, offering excellent corrosion resistance, clarity, and structural stability.

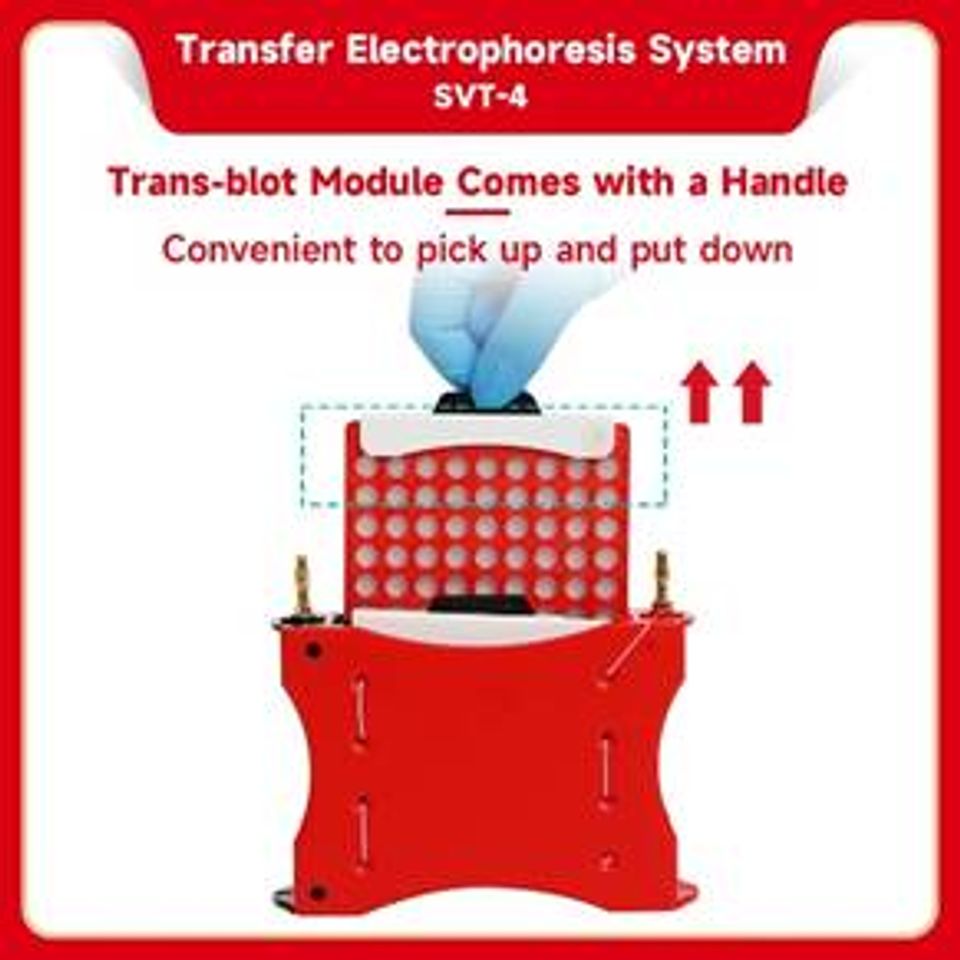

- User-friendly transfer clip – Clearly labeled positive and negative poles with ergonomic handles ensure safe and convenient operation.
- Efficient blotting performance – Achieves high transfer efficiency within approximately 20–40 minutes. The stable structure supports simultaneous ice bath cooling to prevent overheating and ensure reliable experimental results.

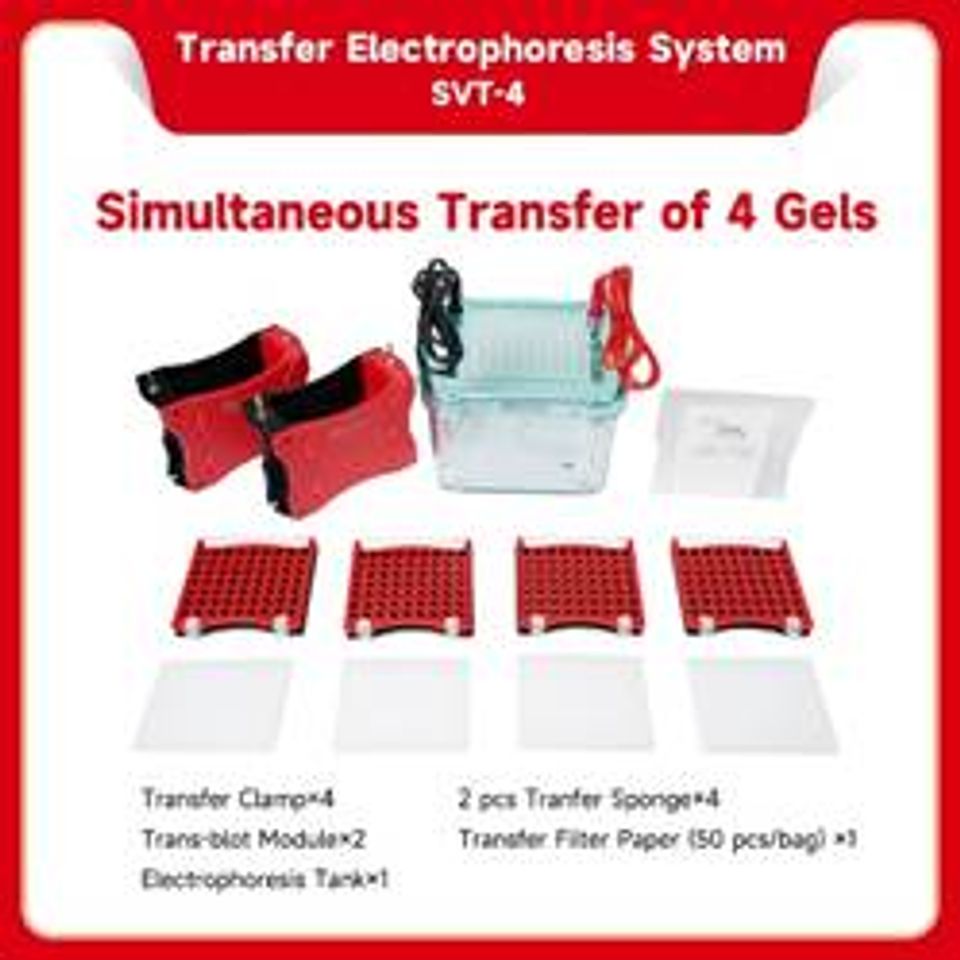

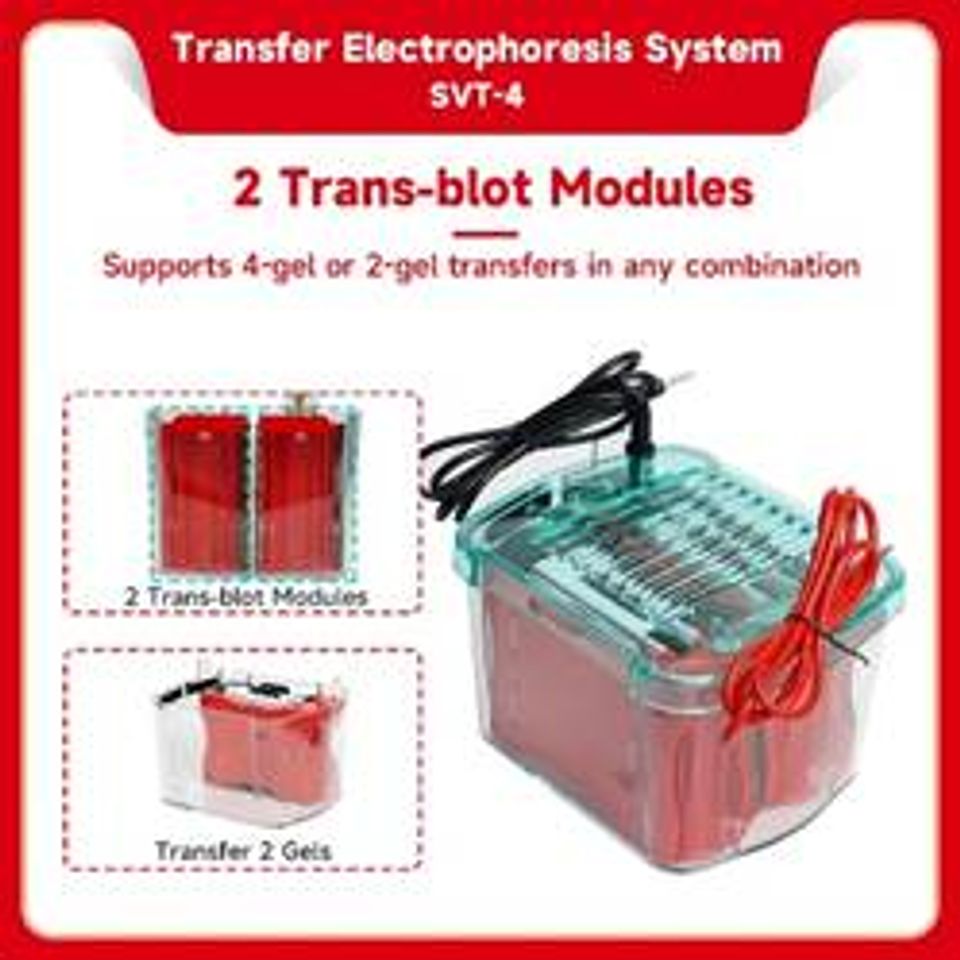

- Multi-sample capability – Supports the transfer of up to four membranes simultaneously for improved throughput and productivity.
Product Parameters
| Catalog # | BE-SVT-4 |
|---|---|
| Number of Gels | (1-4) |
| Blotting Membrane Size | 70×90mm |
| External Dimensions | 153×183×159mm |
| Maximum Buffer Capacity | 1.6 L |
Optional Products & Accessories
Optional Products
| Catalog # | Product Name | Product Description |
|---|---|---|
| BE-G6001-16 | Transfer Membrane Filter Paper (Thick) | 16 pcs（7*9 cm） |
| BE-G6001-200 | Transfer Membrane Filter Paper (Thick) | 200 pcs（7*9 cm） |
| BE-G6002 | Transfer Sponge | 2 pcs/box |
| BE-G6002-15 | 15pcs（7*9 cm） | 2 pcs/box |
| BE-G6002-20 | Transfer Sponge | 20 pcs (7*9 cm) |
| BE-G6002-20B | Transfer Membrane Sponges | 20 pcs（7*9 cm，black） |
| BE-G6002-20C | Transfer Membrane Sponges | 20 pcs（8*9.6 cm，black） |
| BE-G6002-2B | Transfer Membrane Sponges | 2 pieces (7*9 cm, black) |
| BE-G6002-2C | Transfer Membrane Sponges | 2 pcs（8*9.6 cm，Black） |
| BE-G6007-50 | Transfer Membrane Filter Paper (Thin) | 50 pcs/bag |
| BE-G6007-500 | Transfer Membrane Filter Paper (Thin) | 500 pcs/box |
| BE-G6014-15*15CM | NC Membrane (Nitrocellulose Membrane) | 15*15cm |
| BE-G6015-0.45 | PVDF Membrane (0.45 μm) | 0.45 μm 13.25*15cm |
| BE-G6015-1-0.22 | PVDF Membrane (0.2 μm) | 0.2 μm 13.25*15cm |
| BE-G6018-15*15CM | Nylon Membrane | 15 cm*15 cm |
| BE-G6019-9 | Antibody Incubation Box (9 Grids) | 9 grids |
| BE-G6020-9 | Antibody Incubation Box (9 Grids Light-Proof) | 9 Grids Light-Proof |
| BE-G6025-2 | Antibody Incubation Box (2 Grids) | 2 grids |
| BE-G6026-4 | Antibody Incubation Box (4 Grids) | 4 grids |
| BE-G6044-0.45 | PVDF Membrane（0.45μm） | 0.45 μm 7*9cm 10 pcs/bag |
| BE-G6045-0.22 | PVDF Membrane (0.22μm) | 0.2 μm 7*9 cm 10 pcs/bag |
| BE-G6046-0.2 | PVDF Transfer Membranes（0.2μm, 5.5×8.5cm） | 0.2 μm 5.5*8.5 cm 10 sheets per pack. |
| BE-G6047-0.45 | PVDF Transfer Membranes（0.45μm, 5.5×8.5cm） | 0.45 μm 5.5*8.5 cm 10 sheets per pack. |
| BE-G6047-50-0.45 | PVDF membrane (0.45 μm) | 0.45 μm 5.5*8.5cm 50 pcs/box |
| BE-G6048-2 | WB Transfer Sponge (Filter Paper-Free) | Transfer Sponge (Filter Paper-Free) |
| BE-G6048-20A | WB Transfer Sponge (Filter Paper-Free, 70×90mm) | 20 pcs（70*90 mm） |
| BE-G6048-20B | WB Transfer Sponge (Filter Paper-Free, 80×96mm) | 20 pcs（80*96 mm） |
| BE-G6048-20C | WB Transfer Sponge (Filter Paper-Free, 82×110mm) | 20 pcs（82*110 mm） |
| BE-G6050-0.45 | PVDF membrane (0.45 μm) | 0.45 μm 26.5 cm*3.75 m |
| BE-G6072-2 | Antibody Incubation Box (2 Grids Light-Proof) | 2 Grids Light-Proof |
| BE-G6073-4 | Antibody Incubation Box (4 Grids Light-Proof) | 4 Grids Light-Proof |
| BE-G6075-4 | Antibody Incubation Box (4-grid, Light-tight) | 4-grid, Light-tight |
| BE-G9055-1 | Antibody Incubation Box (1 Grid Full Membrane) | 1 Grid Full Membrane |
| BE-G9055-4 | Antibody Incubation Box (4 Grid Full Membrane) | 4 Grid Full Membrane |
| BE-SPW-6S | Electrophoresis Power Supply (Programmable) | Set |
| BE-SVT-2 | Electrophoresis System (Transfer) | |
| BE-SZY-LM22 | PVDF Membrane (0.22μm, Diameter 50mm, Hydrophilic) | 50 pcs/box |
| BE-SZY-LM45 | PVDF Membrane (0.45μm, Diameter 50mm, Hydrophilic) | 50 pcs/box |
| BE-W10600001 | NC Membrane (Nitrocellulose Membrane) | 30 cm*4 m |
| BE-WGPVDF22 | PVDF Membrane (0.2μm) | 0.2 μm 26.5 cm*3.75 m |
| BE-WGPVDF45 | PVDF Membrane（0.45μm） | 0.45 μm 26.5 cm*3.75 m |
Electrophoresis & Transfer Accessories
| Catalog # | Product Name |
|---|---|
| BE-SVT-TC | Transfer-Blot Module |
| BE-SVT-2-ZT | Transfer Tank |
| BE-SVT-2-JZ | Gel Holder Cassttle |
| BE-SVT-2-HG | Electrophoresis System Upper Lid With Power Cables |
| BE-SVE-2-ZT | Electrophoresis System Tank With Platinum Wire |
| BE-SVE-2-ZJ | Gel Maker Base |
| BE-SVE-2-YZ | Replacement Gaskets |
| BE-SVE-2-HT | Buffer Tank |
| BE-SVE-2-DX | Electrophoresis System Power Cables |
| BE-SVE-2-DB | Buffer Dam |
| BE-SVE-2-BJ | Gel Releasers |
| BE-BVT-4-ZT | Transfer Electrophoresis System Main Body 4 (Including Platinum Wire) |
| BE-BVT-4-JZ | Transfer Clamp |
| BE-BVT-2-ZT | Transfer Electrophoresis System Main Body 2 (Including Platinum Wire) |
| BE-BVE-4-ZT2 | Vertical Electrophoresis System Main Body (Short, Including Platinum Wire) |
| BE-BVE-4-ZT1 | Vertical Electrophoresis System Main Body (Tall, Including Platinum Wire) |
| BE-BVE-4-ZJZJ | Gel Casting Stand |
| BE-BVE-4-ZJJ | Gel Casting Main Body |
| BE-BVE-4-ZJ | Gel Casting Stand |
| BE-BVE-4-YZ | Pre-cast Gel Gasket |
| BE-BVE-4-MFJ | Gel Casting Sealing Silicone |
| BE-BVE-4-HT | Electrophoresis System Lower Tank |
| BE-BVE-4-HG | Electrophoresis System Upper Cover (Including Electrophoresis Wire) |
| BE-BVE-4-DX | Electrophoresis Wire |
