Servicebio Pathology Workflow Products

Image (9)

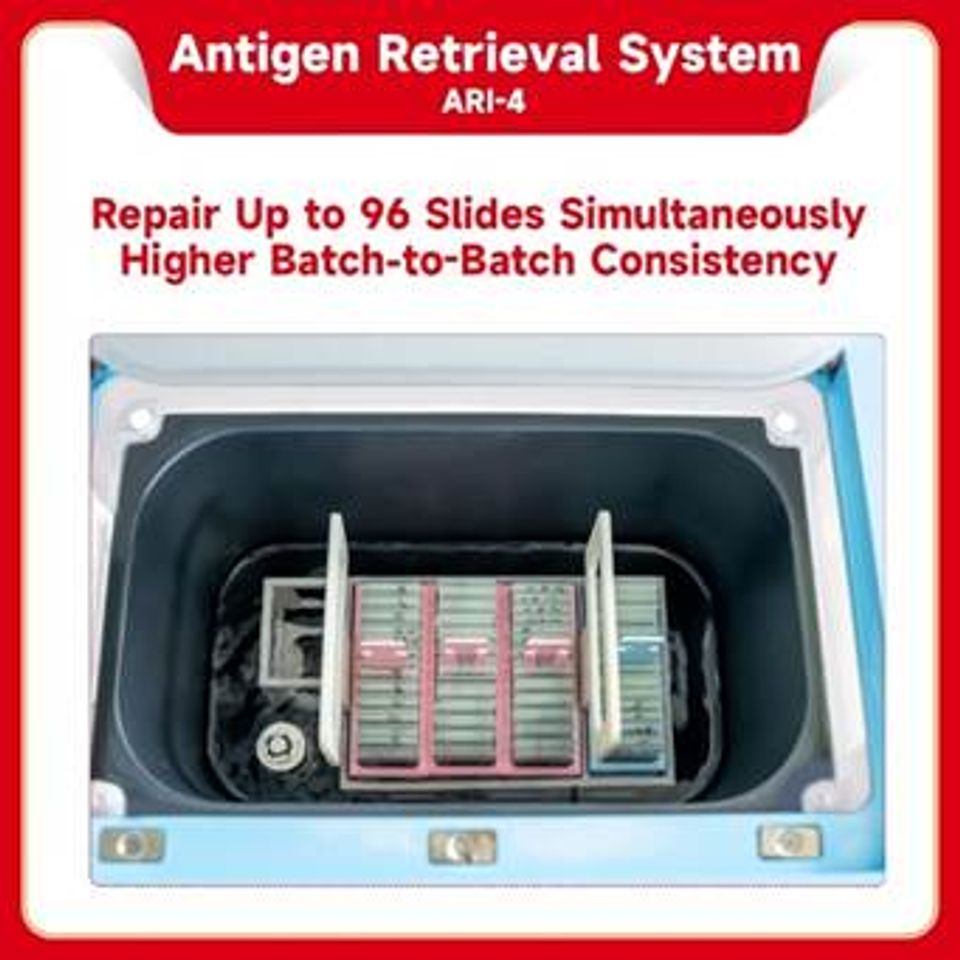

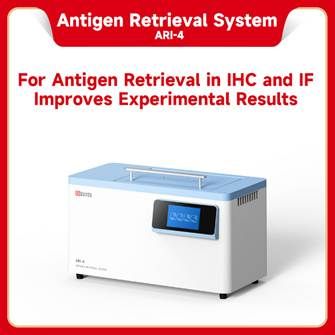

Antigen Retrieval System

Antigen retrieval for IHC, IF and other experiments, capable of processing 96 slides simultaneously with full-process temperature control for faster and better experimental results.

Cat. No. : BE-ARI-4

Brand: Servicebio
Image (13)
Image (10)
Product Introduction

This system is designed for antigen retrieval in IHC, IF, and related applications.

  • Capable of processing up to 96 slides simultaneously, ensuring excellent batch-to-batch consistency.

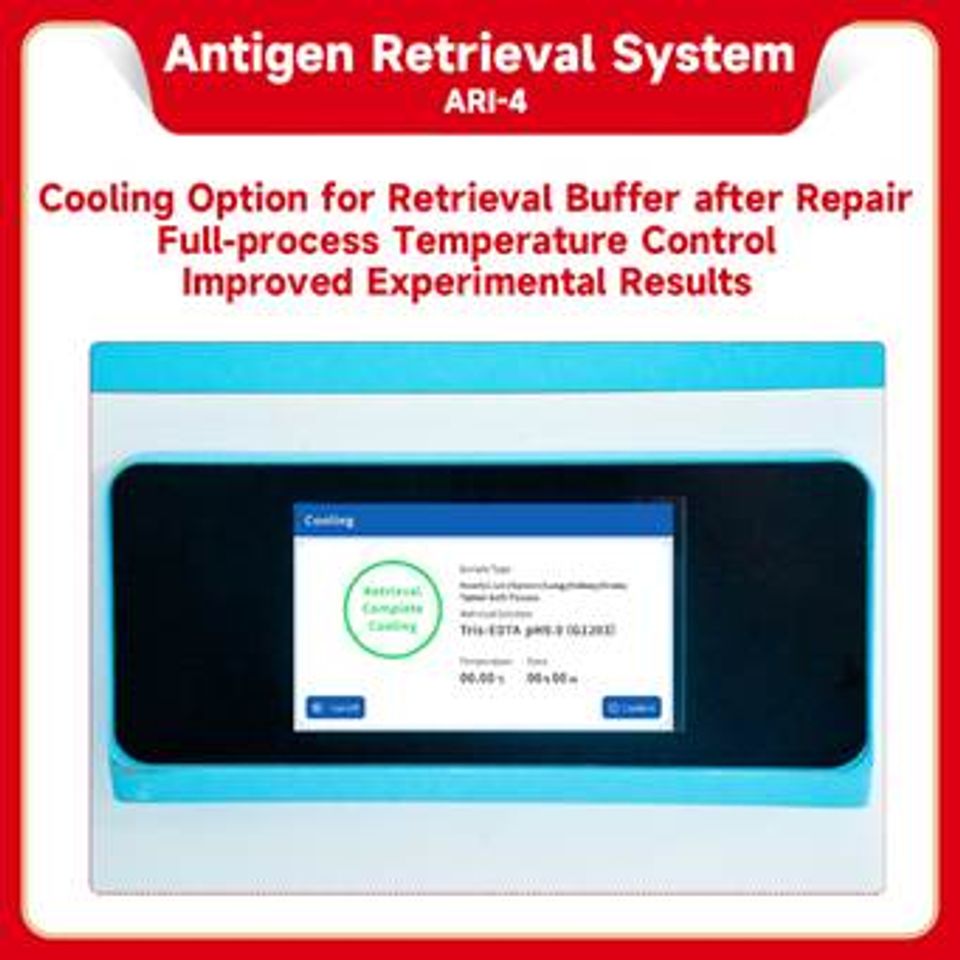

  • Features post-retrieval cooling of the retrieval solution, enabling full-process temperature control for improved experimental outcomes.
  • Prevents slide detachment throughout the workflow, making it particularly suitable for tissues with high collagen content.
  • Optimized retrieval conditions yield more robust and reliable positive staining results.
  • Supports direct heating of antigen retrieval solutions with acidic or alkaline pH (6–9).

Product Parameters

Cat. No. BE-ARI-4
Dimensions 463 x 232 x 290mm
Weight 7.1Kg
Temperature Range RT+5~100℃
Temperature Accuracy ± 2°C
Minimum Setting Precision 1°C


Structural Diagram
Image (11)
Image (12)
Image (15)

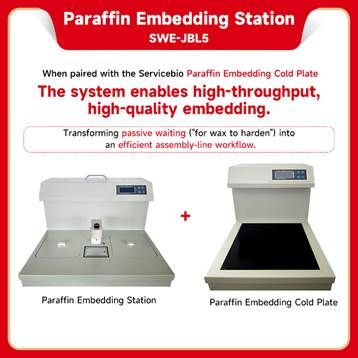

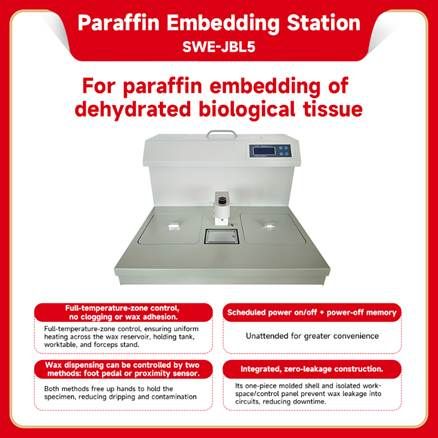

Paraffin Embedding Station

Used for paraffin embedding of dehydrated biological tissues; when paired with the Servicebio Paraffin Embedding Cold Plate (SWE-JBL5T), it enables time-saving, high-throughput, and high-quality embedding procedures

Cat. No.: BE-SWE-JBL5

Brand: Servicebio
Image (16)
Product Introduction

The Servicebio Paraffin Embedding Station provides full-zone temperature control, delivering uniform heating across the wax reservoir, holding tank, worktable, and forceps stand—eliminating clogging and wax buildup. Two dispensing modes (foot pedal or proximity sensor) allow hands-free operation, enabling precise specimen positioning while minimizing spills and contamination.

The station features programmable functions, including timed start/shutdown and memory settings, along with power-off protection to ensure workflow continuity. Its one-piece molded housing and separated workspace/control panel design prevent wax leakage into internal circuits, reducing maintenance and downtime.

When paired with the BE-SWE-JBL5T Paraffin Embedding Cold Plate, the system supports high-throughput, high-quality embedding, transforming passive waiting for wax solidification into an efficient, assembly-line-style workflow.
Technical Parameters
Wax Melting Tank Temperature Range 0–99°C (Accuracy: ±1°C)
Insulation Tank Temperature Range 0–99°C (Accuracy: ±1°C)
Worktable Temperature Range 0–99°C (Accuracy: ±1°C)
Forceps Holder Temperature Range 0–99°C (Accuracy: ±1°C)
Wax Tube Default Temperature 68°C
Wax Tank Capacity 5000 mL
Wax Discharge Mode Proximity switch control or foot pedal control
Timer Settings Can be set for automatic power on/off within a week
Cooling Table Temperature Range 0 to -40°C
Compressor Operation Mode After each on/off cycle, wait 10 minutes before the next operation.

The same applies when powering on for the first time.
Power Supply AC220V ±10%
Power Supply Frequency 50Hz


Image (17)

Paraffin Microtome

A universal chuck seamlessly accommodates both embedding cassettes and paraffin blocks of varying sizes and thicknesses, ensuring uniform sectioning thickness, consistent staining intensity, and more accurate results.

Cat. No.: BE-PM-24

Brand: Servicebio
Product Introduction

The Paraffin Microtome is designed for versatility and precision, eliminating the need for frequent chuck changes. It easily produces high-quality sections from:

  • Standard embedding cassettes
  • Thickened embedding cassettes
  • Non-cassette square tissue blocks

This instrument ensures uniform section thickness for consistent staining intensity, enabling more reliable and accurate experimental results.
For optimal paraffin sectioning performance—particularly when preparing samples for H&E staining or IHC—it is recommended to use the microtome in combination with:

  • Servicebio Multi-Function Marking System (BE-ZY-D200)
  • Embedding Cassettes (BE-EF-1)
  • Automated Tissue Processor (BE-ATD-405)
  • Paraffin Microtome (BE-PM-24)
  • Adhesive Slides (BE-G6012-1)

General Parameters

Section Thickness Range 1~60 μm
Section thickness settings 1~10 μm (1 μm increment) /
10~20 μm (2 μm increment) /
20~60 μm (5 μm increment)
Blade holder lateral displacement 50 ± 2 mm
Vertical stroke displacement (cross roller guide) 70 ± 2 mm
Maximum section height (from base plate) 145 mm
Minimum section height (from base plate) 85 mm
Maximum specimen block size 68 × 45 × 15 mm
Coarse feed wheel rotation direction Clockwise (feed) / Counterclockwise (retract)


Dimensions/Weight

Width (including handwheel & coarse feed wheel) 422 mm
Length (including waste tray) 556 mm
Height (including feet) 295 mm
Weight 15 kg
Waste tray capacity ≈1500 mL


Image (20)
Image (21)
Image (9)

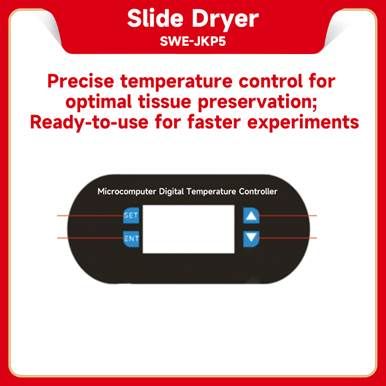

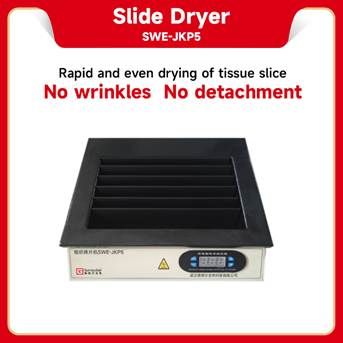

Slide Dryer
Ensures fast and uniform drying of tissue sections, resulting in wrinkle-free slides that prevent tissue detachment.

Cat. No.: BE-SWE-JKP5

Brand: Servicebio
Image (12)
Image (10)
Product Introduction

The Servicebio BE-SWE-JKP5 Paraffin Tissue Slide Dryer provides rapid and uniform drying of tissue sections, ensuring wrinkle-free slides with no tissue detachment. Its precise temperature control protects tissue integrity, while the ready-to-use design enhances workflow efficiency. For optimal performance, it pairs seamlessly with the Servicebio Paraffin Microtome (BE-PM-24) and the Servicebio Tissue Flotation Bath (BE-SWE-JK5).

Technical Parameters

Parameter Specification
Temperature Control Range Adjustable, 0~120°C
Temperature Control Accuracy ±1°C
Display Resolution 0.1°C
Temperature Hysteresis Adjustable, 0.1~30°C
Temperature Calibration +10~-10°C
Start Delay 0~10 minutes
High-Temperature Alarm 0~120°C
Data Lock Yes
Data Save Yes
Restore Factory Settings Yes
Slide Slot Rows 6 rows
Slide Capacity 9 slides/row, 54 slides total
Slide Orientation Reversible (top/bottom)
Power Rating 300 W
Supply Voltage 10 A / AC 200 V
Operating Ambient Temperature -20°C ~ 70°C
Dimensions 300 x 350 x 105 mm
Dual Function Spreading / Drying

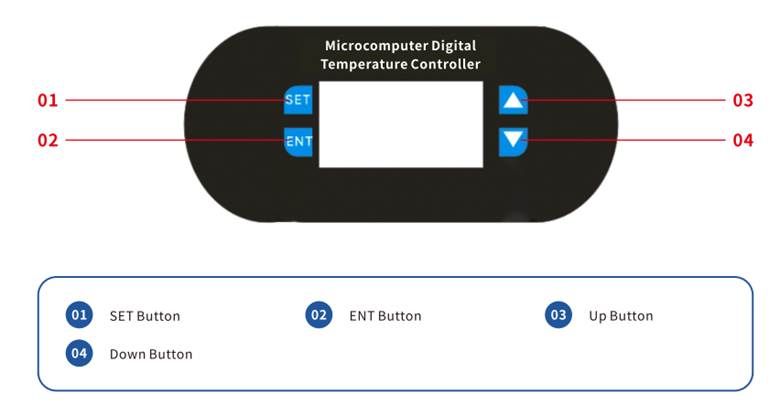

Panel Diagram
Image (11)
Image (14)

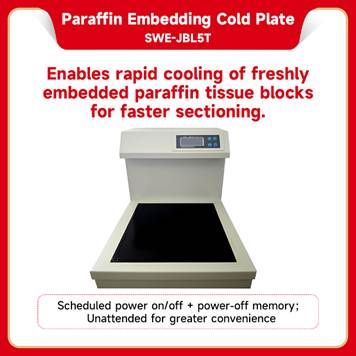

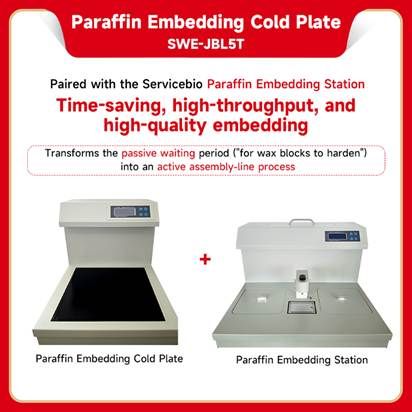

Paraffin Embedding Cold Plate
Enables rapid cooling of freshly embedded paraffin tissue blocks, allowing faster and more efficient sectioning. When used in combination with the Servicebio Paraffin Embedding Station (PE-SWE-JBL5), it supports high-throughput workflows, reduces turnaround time, and ensures consistent, high-quality embedding results.

Cat. No.: BE-SWE-JBL5T

Brand : Servicebio
Image (13)
Product Introduction

The Servicebio Paraffin Embedding Cooling Station provides rapid, uniform cooling of freshly embedded paraffin tissue blocks, enabling faster and smoother sectioning. Its programmable timer and memory functions support unattended operation, while power-off protection ensures continuity during workflows.

When paired with the Servicebio Paraffin Embedding Station (BE-SWE-JBL5), it creates an efficient, high-throughput embedding workflow that saves time and improves overall quality. The system transforms the traditional passive waiting period for wax block solidification into an active, assembly-line style process.

Technical Parameters

Input Voltage AC 220V/50Hz; Operating current 0.62A, Starting current 2.3A
Maximum Power 120 AV
Operating Temperature Range 15°C ~ 30°C
Operating Relative Humidity ≤ 80%
Cold Playte Size 325 x 285 mm
Cold Plate Temperature Detection -18°C (at ambient temperature 30°C, achieved in 1–2 hours)
Dimensions 400 x 585 x 350 mm
Weight Approx. 22 kg
Display LCD dot-matrix dynamic display
Setting Functions Programmable daily on/off timer (24-hour cycle). Customizable working days (weekly schedule).
Temperature Setting Setting range: 0°C ~ 40°C Display range: -40°C ~ 99°C
Compressor Operation Mode Requires a 5-minute delay after each shutdown before restarting.
Initial power-on also requires a 5-minute delay.
Retains settings (on/off times, temperature) after power loss. Memory Function


Image (15)

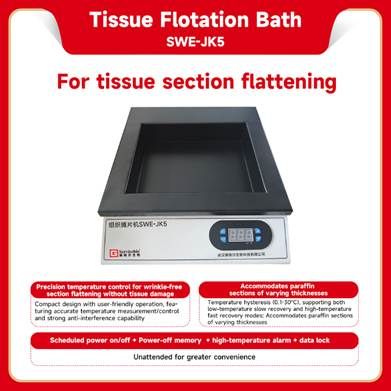

Tissue Flotation Bath
Designed for efficient tissue section flattening. When used with Servicebio Adhesive-Coated Slides (G6012-1), it helps ensure secure adhesion and prevents section detachment.

Cat. No.: BE-SWE-JK5

Brand: Servicebio
Image (16)
Product Introduction

The Servicebio Tissue Flotation Bath is engineered for precise and consistent flattening of tissue sections.

Key Features:

  • Precision Temperature Control: Maintains optimal conditions to ensure wrinkle-free section flattening without compromising tissue integrity.
  • Advanced Heating Technology: Compact, user-friendly design equipped with accurate temperature measurement and control, along with strong anti-interference performance.
  • Adaptive Operation: Supports paraffin sections of various thicknesses with adjustable temperature hysteresis (0.1–30 °C), accommodating both low-temperature slow-recovery and high-temperature rapid-recovery modes.
  • Smart Functionality: Programmable timer with memory function allows for unattended operation, while power-off protection safeguards experimental continuity.

For best performance, pair with Servicebio Adhesive-Coated Slides (BE-G6012-1), which feature a specialized surface treatment to effectively prevent tissue section detachment.

Technical Parameters

Input Voltage AC 220V/50Hz; Operating current 0.62A, Starting current 2.3A
Temperature Control Accuracy 1°C
Display Accuracy 0.1°C
Temperature Differential Adjustable 0.1~30°C
Temperature Calibration +10~-10°C
Delayed Start 0~10 minutes
High-Temperature Alarm 0~120°C
Data Lock Yes
Data Save Yes
Restore Factory Settings Yes
Flattening Volume 2000 mL
Flattening Dimensions 230 x 180 x 53 mm
Overall Dimensions 300 x 350 x 105 mm
Power 300 mm
Power Supply Voltage 10 A/ AC 220 V
Operating Environment Temperature -20°C~70°C
